| Model No. | 24F Mini Distribution Cable 5.0mm Double Sheath |
|---|---|
| Brand Name | OEM |
| Fiber Brand | Corning/YOFC |
| Fiber Type | SM OM1 OM2 OM3 OM4 OM5 |
| Cable OD | 5.0mm |
| Jacket Material | OFNR OFNP LSZH TPU |
| Operating temperature | -20～+70 ℃ |
| Min.Bend Radius | Dynamic 20D/ Static 10D |
| Cable Weight | 22kgs/km |
| Fiber Count | 24F |
| Jacket Color | 12 colors Available |
Product description
Application
* Used in indoor cabling.
* Used as access building cable.
* Used as interconnect lines of equipments, and used in optical connections in optical communication rooms.
* Used in pigtails and patch cords.
Features
* Good mechanical and environmental characteristics.
* Flame retardant characteristics meet the requirements of relevant standards.
* The mechanical characteristics of jacket meet the requirements of relevant standards.
* Soft, flexible, easy to lay and splice, and with big capacity data transmission.
* Meet various requirements of market and clients.
Fiber Characteristic
|
Fiber style |
Unit |
SM G652D |
MM 62.5/125 |
OM2/OM3/OM4 |
OM5 |
|
|
Condition |
nm |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
|
|
Attenuation |
dB/km |
0.36/0.23 |
2.4/0.6 |
2.4/0.6 |
2.4/0.6 |
|
|
Dispersion |
1550nm |
ps(nm·km) |
≤18 |
----- |
|
----- |
|
1625nm |
ps(nm·km) |
≤22 |
----- |
|
----- |
|
|
Overfilled Modal Bandwidth |
850nm |
MHZ·.km |
----- |
≥200 |
≥500/≥1500/≥3500 |
≥3500 |
|
1300nm |
MHZ. ·km |
----- |
≥500 |
≥500/≥500/≥500 |
≥500 |
|
|
Effective Modal Bandwidth |
850nm |
MHZ·.km |
|
|
≥950/≥2000/≥4700 |
≥4700 |
|
Support Distance on 40GBASE-SR4 / 100GBASE-SR101 |
850nm |
M |
|
|
-/140/170 |
200 |
|
Support Distance on 10GBASE-SR |
850nm |
M |
|
|
150/300/550 |
150 |
|
Support Distance on 1000BASE-SR |
850nm |
M |
|
|
750/1000/1100 |
440 |
Cable Parameters
|
Fiber count |
24F |
Fiber Type |
SM OM1 OM2 OM3 OM4 OM5 |
|
Cable Weight |
22kgs |
Cable OD |
5.0mm |
|
Min.Bend Radius |
Dynamic 20D/ Static 10D |
Tensile (Long Term.) |
200N |
|
Jacket Material |
OFNR OFNP LSZH TPU |
Tensile (Short Term.) |
440N |
|
Jacket Color |
12 colors available |
Crush (Long term) |
200N/100mm |
|
Operating temperature |
-20～+70 ℃ |
Crush (Short term) |
1000N/100mm |
Cable Structure

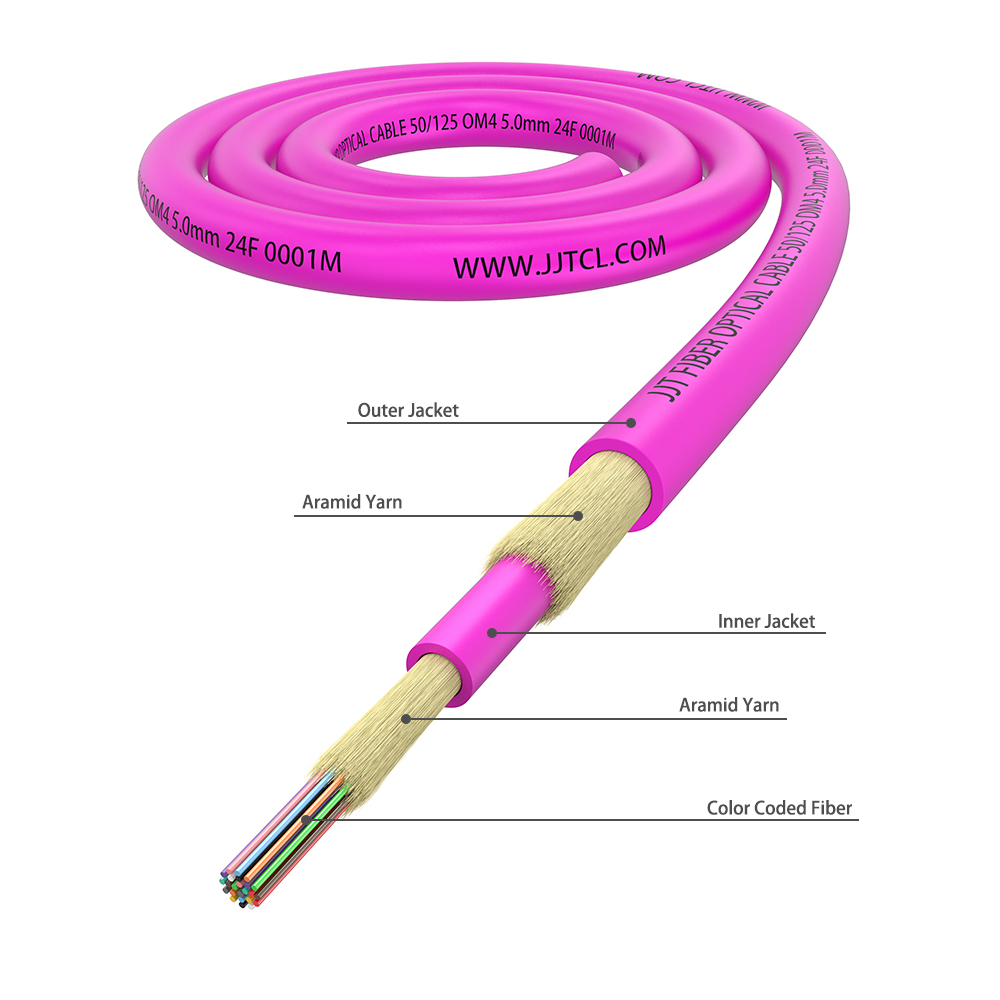

24F Mini Distribution Cable 5.0mm Double Sheath
