Basic Info

Brand Name	OEM
place of origin	China
Number of cores	2
Connector Type	ST, FC, SC, FDDI, ESCON, LC, MTRJ MU
Outer jacket	LSZH,PVC,PE,OFNP,OFNR
Length	Custom Length
Polish	UPC(MM); APC(SM)
Cable Outer Diameter	Figure 8 3.0mm
Color	Black or Customized

Product description

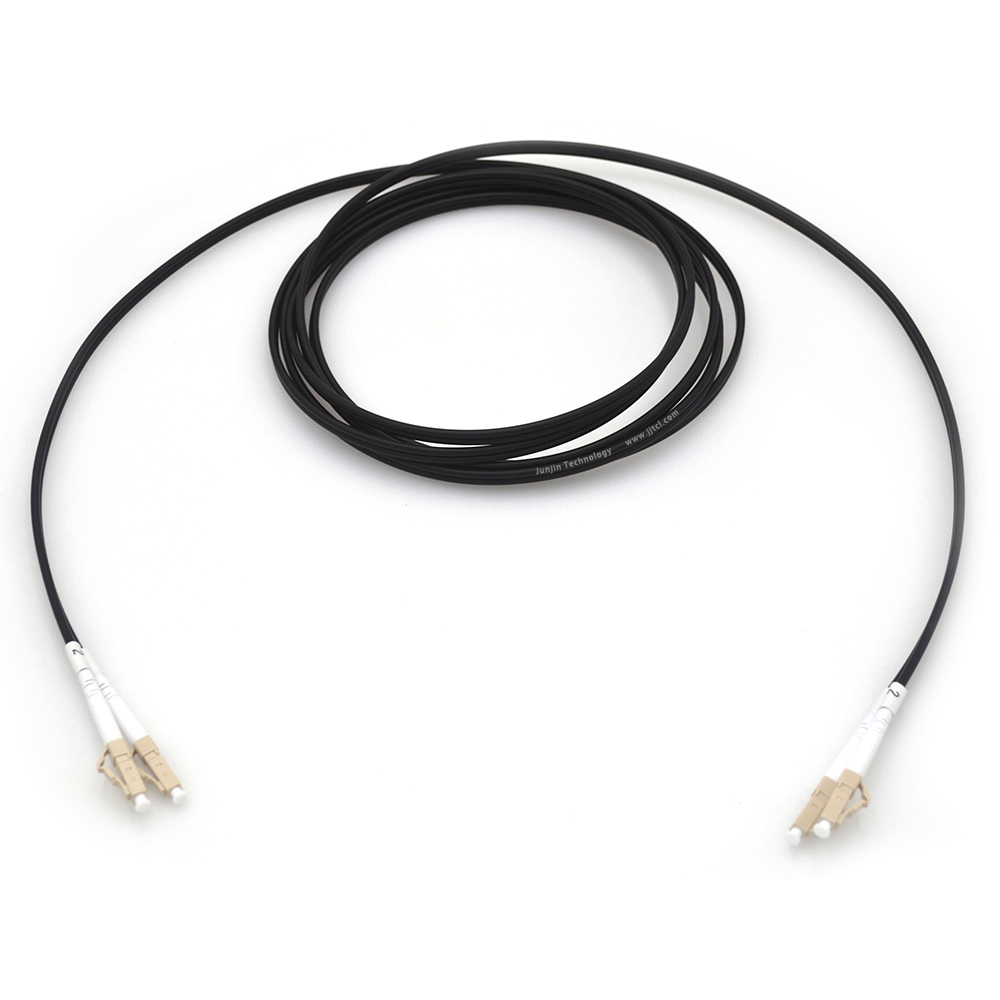

Figure 8 Duplex Armoured Patchcord

JJT Duplex Figure 8 LC-LC Armored Patch cord can be used directly in different harsh environment without additional protection. The stainless steel tube prevents optic fiber from damage that improves stability of the system and reduce the cost for maintenance. Multi-fiber Armored patch cord are also available. They are suitable for LAN systems, FTTH, Intelligent optical fiber network in buildings. Underground network systems, CCTV security systems, broadcasting and cable TV network system.

JJT provides the broadest choice of armored patch cord to the industry including ST, FC, SC, FDDI, ESCON, LC, MTRJ and MU with Ultra-Polished (UPC), Angle-Polished(APC) or other Polish requirement. with our state of art testing equipment. Refined polishing machine, advanced polishing procedure and a group of experienced technicians, we make reliable and top quality patch cord at an attractive price. Every armored patch cord supplied is guaranteed to be well polished and exceeds the industry standard.

Applications:

Datacentre and Colocation

CATV / VIDEO

Passive Optical Network PON

FTTX

ATM, SONET and WDM

Military applications

Specification:

	Single-mode	Multi-mode
Insertion Loss	≤ 0.20dB(Typical) ≤ 0.30dB(Maximum)	≤ 0.20dB(Typical) ≤ 0.30dB(Maximum)
Return Loss	≥ 55.00dB(PC) ≥ 65.00dB(APC)
Durability	≤ 0.20dB typical change, 1000 matings
Ferrule Specification	125.3+1/-0μ m, concentricity: ≤ 1.0μ m 125.3+1/-0μ m, concentricity: ≤ 0.5μ m	127+3/-0μ m, concentricity: ≤ 4.0μ m
Operating Temperature	-40 ~ +85	-40 to +85
