Basic Info
| Model No. | MPO-LC 24F 0.9mm Hydra |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | ≥ 10 |
| Wavelength | 1310/1550nm |
| MPO Connector Brand | US Conec,Hankusan,Nissin |
| LC Connector IL | ≤0.2dB |
| Cable Jacket | LSZH |
| Jacket OD | 0.9mm |
| MPO Connector IL | 0.35dB Max (0.20dB Typical) |
| Fiber Count | 24F |
| Jacket Color | 12colors+12colors with black bar |
| Fiber Type | SM |
| Connector | 24F MPO Male(Yellow),LCUPC(Blue) |
Product description

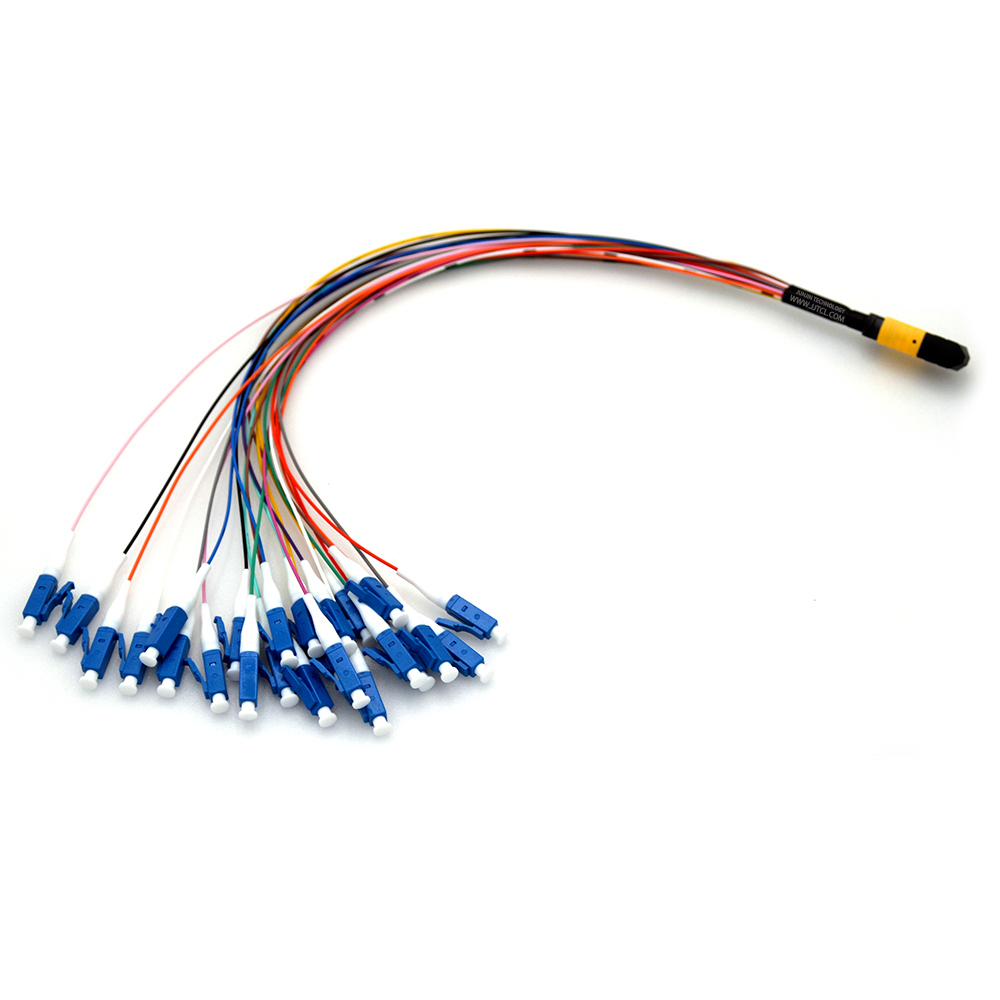

MPO-LC 24F 0.9mm SM Fanout Cable.Male MPO with pin,this type 24F MPO-LC patch cable normally used in cassette box.
MPO/MTP Fan out cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types.
Application
● Data Center Interconnect
● High-Density Fiber Management
● Backbone Installations
● Telecommunication Networks and CATV networks
● LAN/WAN Premises
General Specification
|
Connector A |
MTP/MPO Male |
Connector B |
LC MM |
|
Fiber Mode |
OS2 G657A1 G657A2 |
Wavelength |
1310/1550nm |
|
MPO Connector Low loss IL |
0.35dB Max (0.20dB Typical) |
MPO Connector Standard loss IL |
0.7dB Max(0.40dB Typical) |
|
MPO Connector RL |
≥60dB |
LC Connector IL |
≤0.2dB |
|
MPO Connector Brand |
US Conec,Hankusan,Nissin |
LC Connector RL |
≥50dB |
|
MPO Housing Color |
Green/yellow |
LC Connector Housing Color |
UPC Blue/APC Green |
|
Cable Jacket |
OFNR/OFNP/LSZH |
Fiber Count |
24Fibers |
|
Jacket OD |
0.9mm Loose tubes |
Fan-Out Diameter |
0.9mm |
|
Jacket Color |
12colors+12colors with black bar |
Polarity |
A,B,C or Customized |
MPO-LC 24F 0.9mm SM Fanout Cable
