Basic Info
| Brand Name | OEM |
|---|---|
| place of origin | China |
| Product Name | Hybrid Adapter |
| Fiber Type | SM/MM |
| Working temperature | -40 to +85 |
| Connector Type: | FC Female-SC Female |
Product description

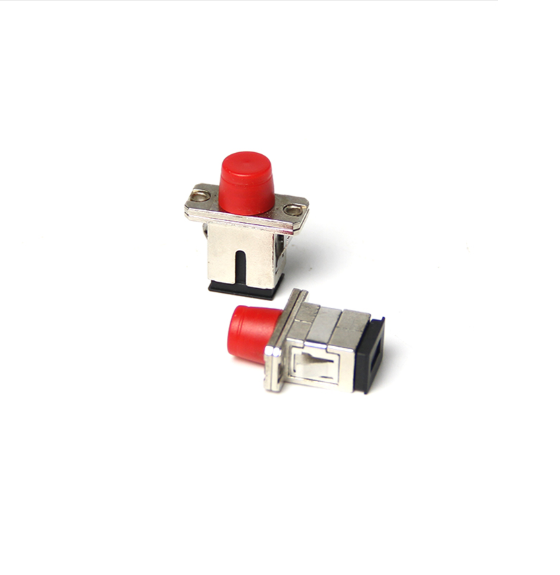

Metal FC-SC Female-Female Hybrid Adapter
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.
The Hybrid Fiber Optic Adapter is a special style of fiber optic adapter that supports the precision connection of different types of fiber optic connectors. They are specially designed to incorporate the Small Form Factor configured environment. The compact design enables network operators to reduce costs via space savings, and by eliminating hybrid cable assemblies.
Features
-Low Insertion Loss, High Return Loss
-Good Compatibility
-High Reliability & Stability
-Compact Design
-High Precision of Mechanical Dimensions
-Ceramic or Bronze Sleeve
Applications
Local Area Networks (LANs)
Wide Area Networks (WANs)
FTTX,CATV System
Telecommunication Networks
Equipment Test
Specifications
|
Product |
Fiber Optic Hybrid Adapter |
|
|
Mode |
S.M |
M.M |
|
Insertion Loss |
≤0.2dB |
≤0.3dB |
|
Return Loss |
≥45dB |
-- -- |
|
Mating Durability(500times) |
Additional Loss≤0.1dB,Return Loss Variability<5dB |
|
|
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Return Loss Variability<5dB |
|
|
Operating Temperature |
40°C~+85°C |
|
|
Storage Temperature |
40°C~+85°C |
|

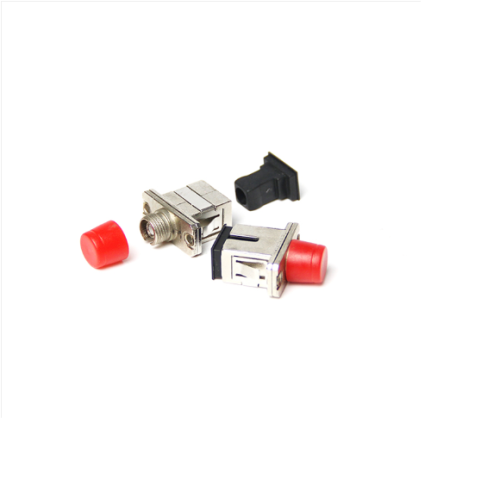

Metal FC-SC Female-Female Hybrid Adapter
