| Model No. | JJT-GJSDH001 |
|---|---|
| place of origin | China |
| IP rate | IP68 |
| Max Fibers | 96FIbers |
| Size | 190×445mm |
| Material | PC |
| Product name | Fiber Optic Splice Clousre |
Product description
Product description
IP protection level can reach IP68
Can be installed 1 x "PLC shunt and 2 x for PLC shunt
With four small round into the cable hole and a large oval into line hole; Joint box shell by vulcanized rubber for seal
Cable in and out of holes are hot shrinkage seal
Characteristics
• can be convenient to increase or decrease the size according to the capacity of the melt flange quantity
• three Settings prevent cable is external pulled off
• molten flange space is big, easy to maintain and storage of optical fiber
Can, in ℃ to + 65℃ temperature range to use
Easy to repeat, open, no tools are required, waterproof, prevent gas leakage, flame retardant
• set vertical and horizontal design characteristics
• SGS ROHS testing the authentication
• suitable for aerial, buried, pipe use
Product parameters
|
Item |
Material Dimension （mm） |
In/out ports |
Max. cable diameter （mm） |
Max. capacity per tray |
Tray Number |
Max capacity( bunchy fiber) |
Seal method |
|
JJT-GJS DH001 |
PC Φ190×445 |
5 |
4 of Φ16 |
24cores |
1－4 |
96cores |
Heat-shrink seal |

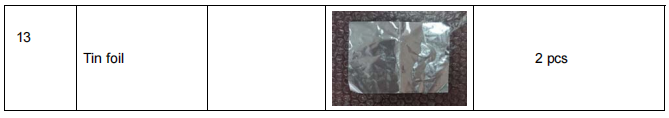

Main components
Optional accessories： valve，earthing device，optical splitter，adapter，pigtail，wire jumper

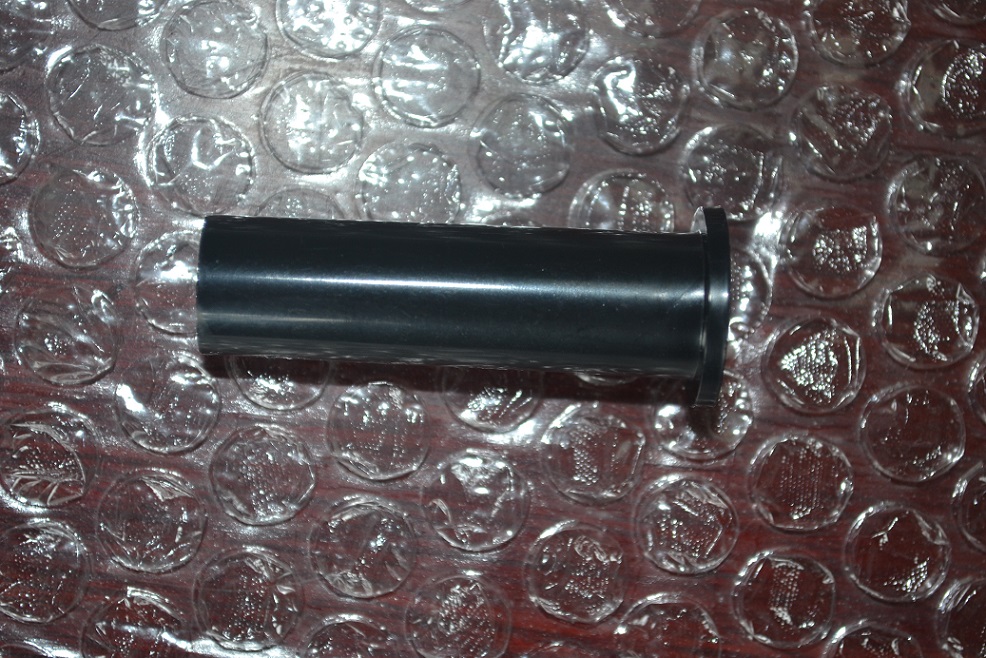

Accessories： specification，Cable protection heat shrinkable tube，fiber heat shrinkable，Buffer
tube，earthing wire，nylon tie，sand paper，Differences card，labeling paper，desiccant，Tin foil，insulating
tape.

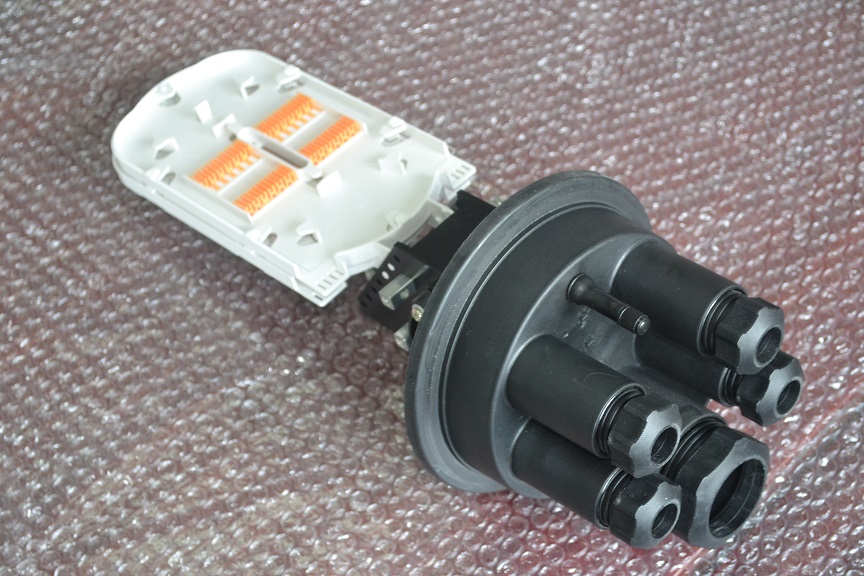

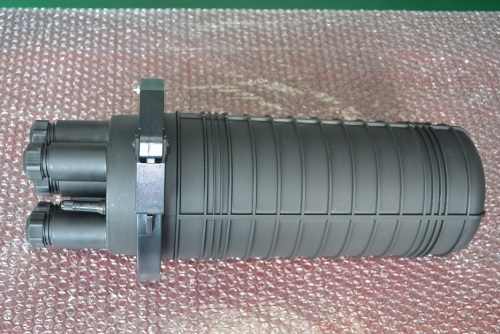

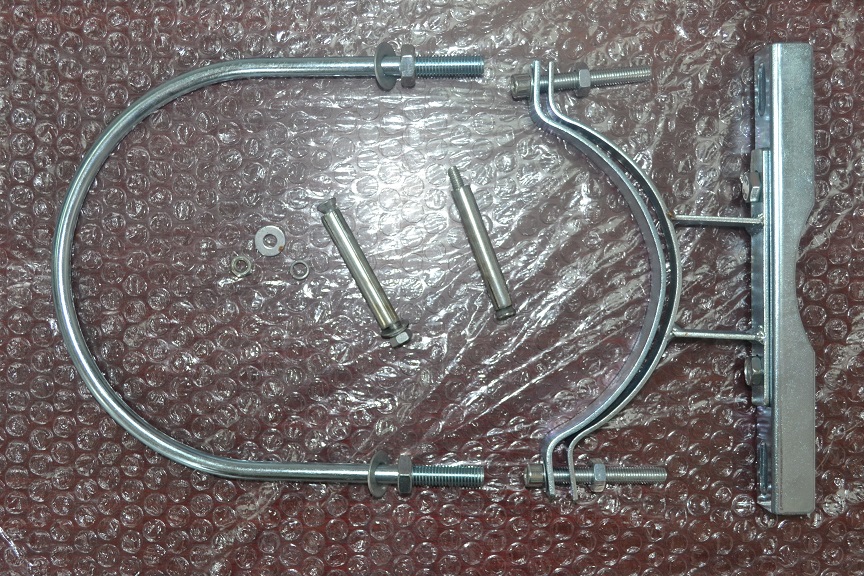

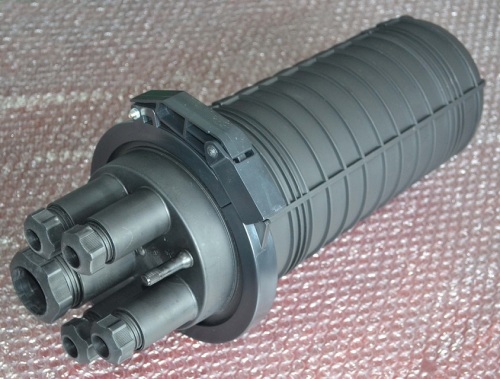

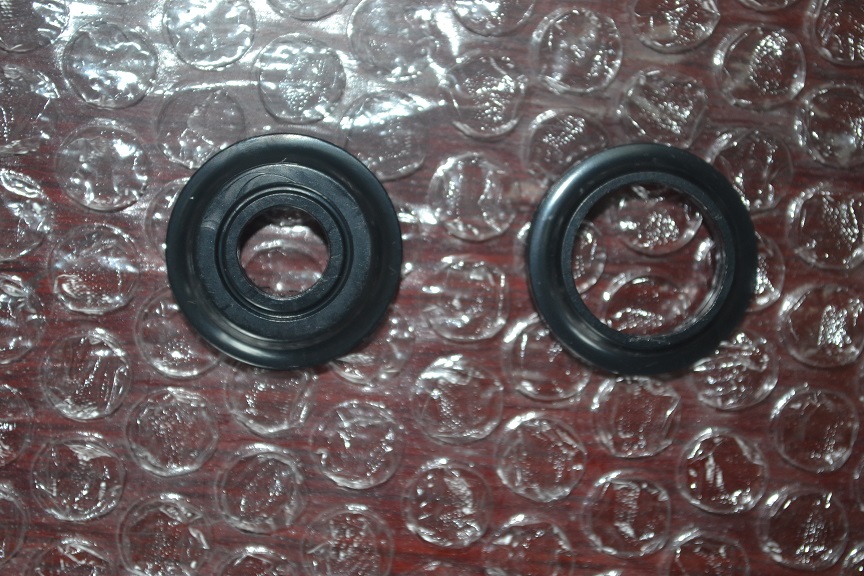

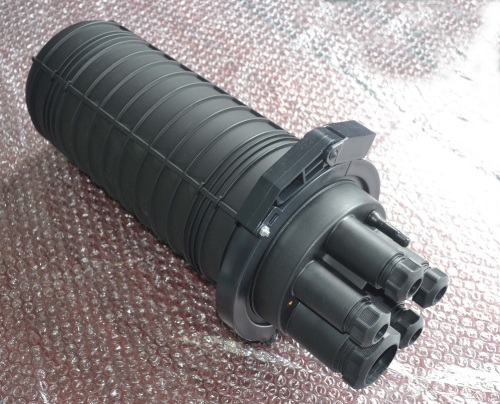

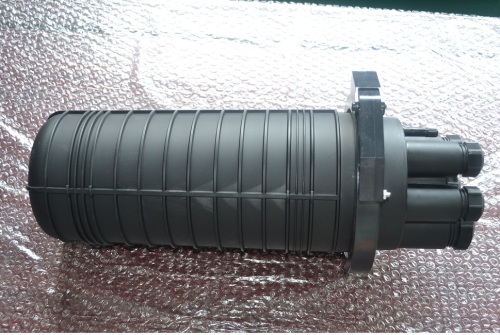

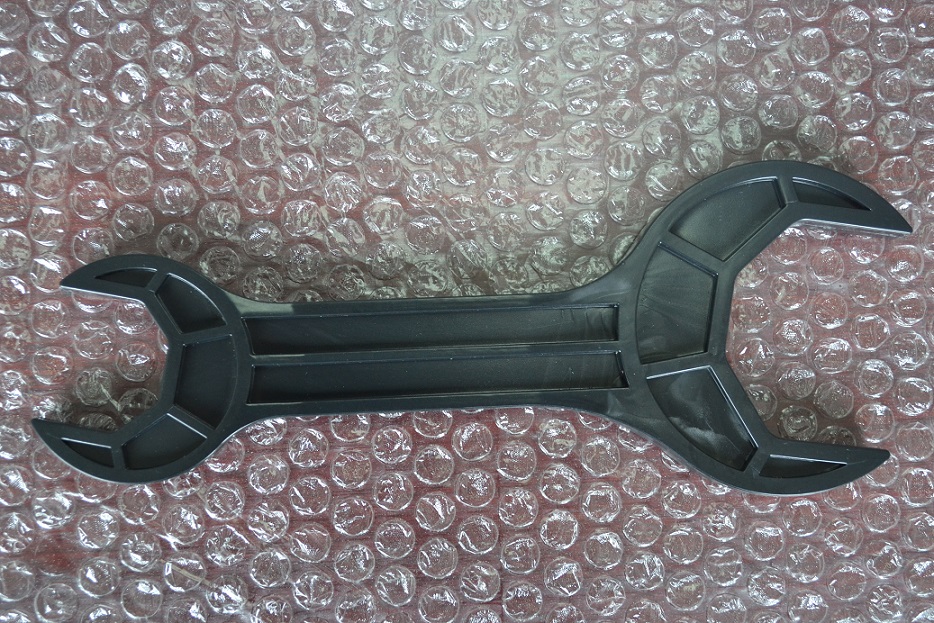

More pcitures
Dome Fiber Optic Splice Clousre Heat shrink Typ
