5.0mm 12F Mini Armored cable

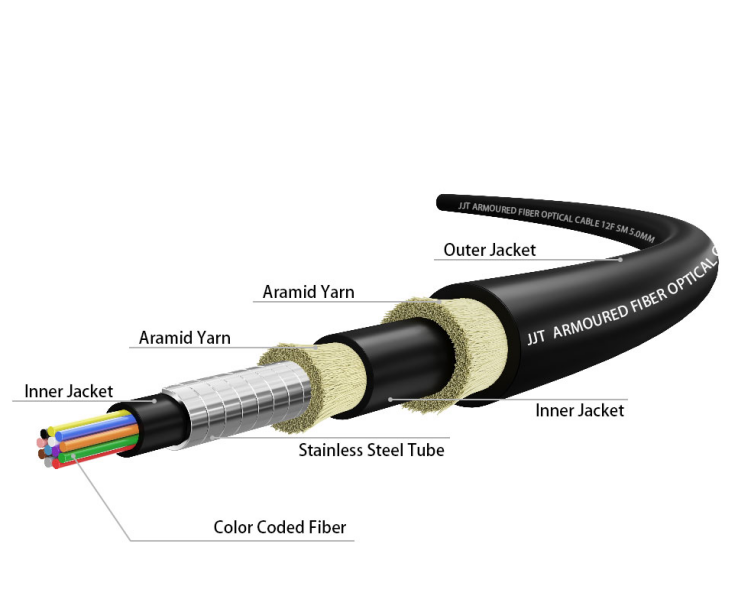

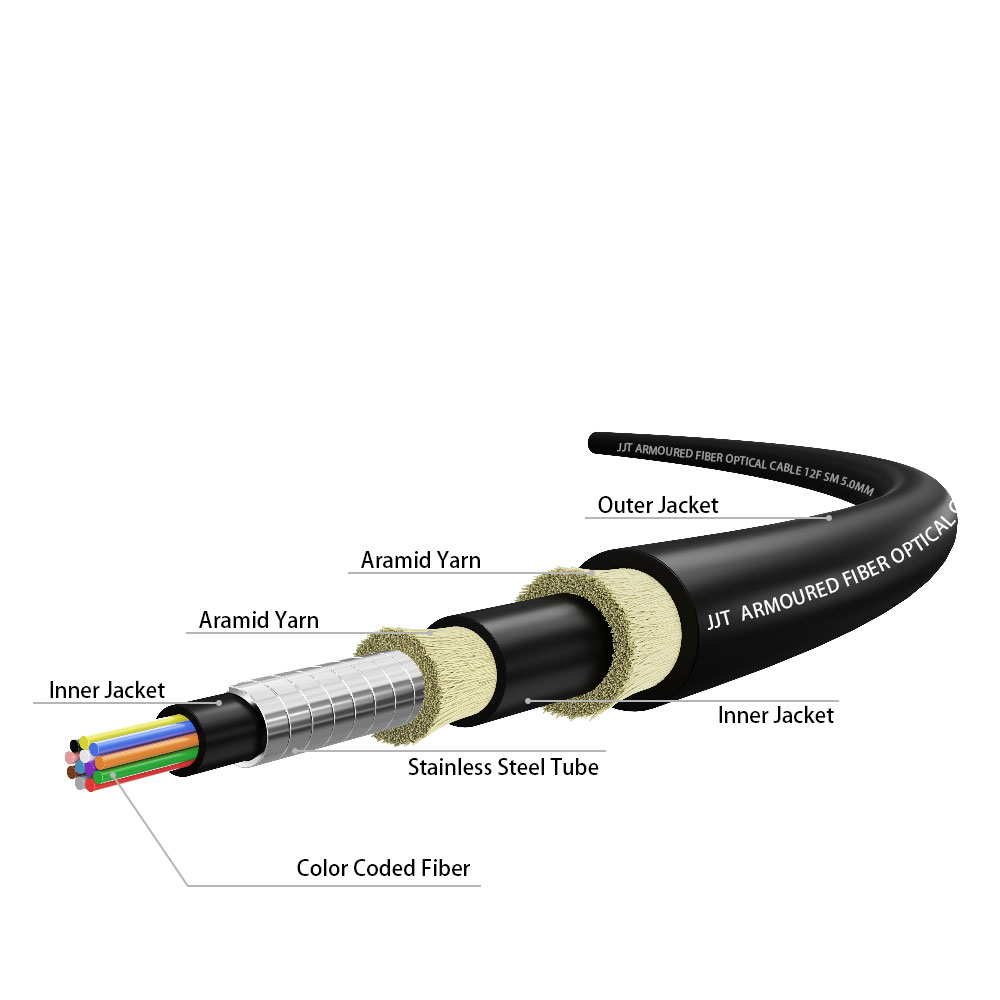

Armored mini fiber optic cables are made of several stranded sub cable which is made of with 4~12 fibers, aramid yarn and LSZH jacket. This kind of cable has very good mechanical characteristics, small outside diameter, high strength, saving space, easy wiring and follow-up processing, is a good transmission medium in the field of communication.
Application:
1,for making patch cord and pigtail
2,for wall, ceiling,tube, cabinet Cabling
3, Distribution of LAN, WAN
4,broadcasting and television system
5,building intelligent control, power control system
6,traffic communication system
Specifications:
|
Item |
Description |
|
Fiber count |
12 |
|
Fiber Type |
OS2 G657A1 G657A2 OM1 OM2 OM3 OM4 OM5 |
|
Inner Jacket |
LSZH |
|
Inner Jacket Diameter |
1.4mm±0.1mm and 3.0mm±0.1mm |
|
Flexible steel tube |
SUS204 |
|
steel tube Size |
OD：2.0±0.01mm ID: 1.55±0.05mm Gap:0.15±0.05 mm |
|
Strength Member |
Aramid yarn model:1000DEN |
|
Jacket Material |
LSZH indoor/outdoor UV stabilized (for all three jackets) |
|
Jacket Thickness |
0.8±0.1 mm (outer jacket) |
|
Jacket OD |
5.0±0.2mm |
|
Standard Color |
Black |
|
Cable Weight |
36kg/km approx |
|
Tensile strength |
Short term:800N, Long term:500N |
|
Crush Load |
Short term:3000N/100mm Long term:500N/100mm |
|
SM Attenuation |
1310nm≤0.3dB/km 1550nm≤0.19dB/km |
|
MM Attenuation |
850nm<3.0dB/km 1300nm<1.0 dB |
|
Min Bending radius |
Short term:10D, Long term:20D |
|
Operating temperature |
PVC OFNP -20℃～70℃,LSZH TPU PE 20℃～80℃ |
|
Storage temperature |
-40℃～+80℃ |
|
Cable Mark |
OPTICAL ARMORED CABLE MM G657A1 12F 5.0mm XXXXM |
12F MINI DOUBLE SHEATH 5.0MM ARMOURED CABLE
