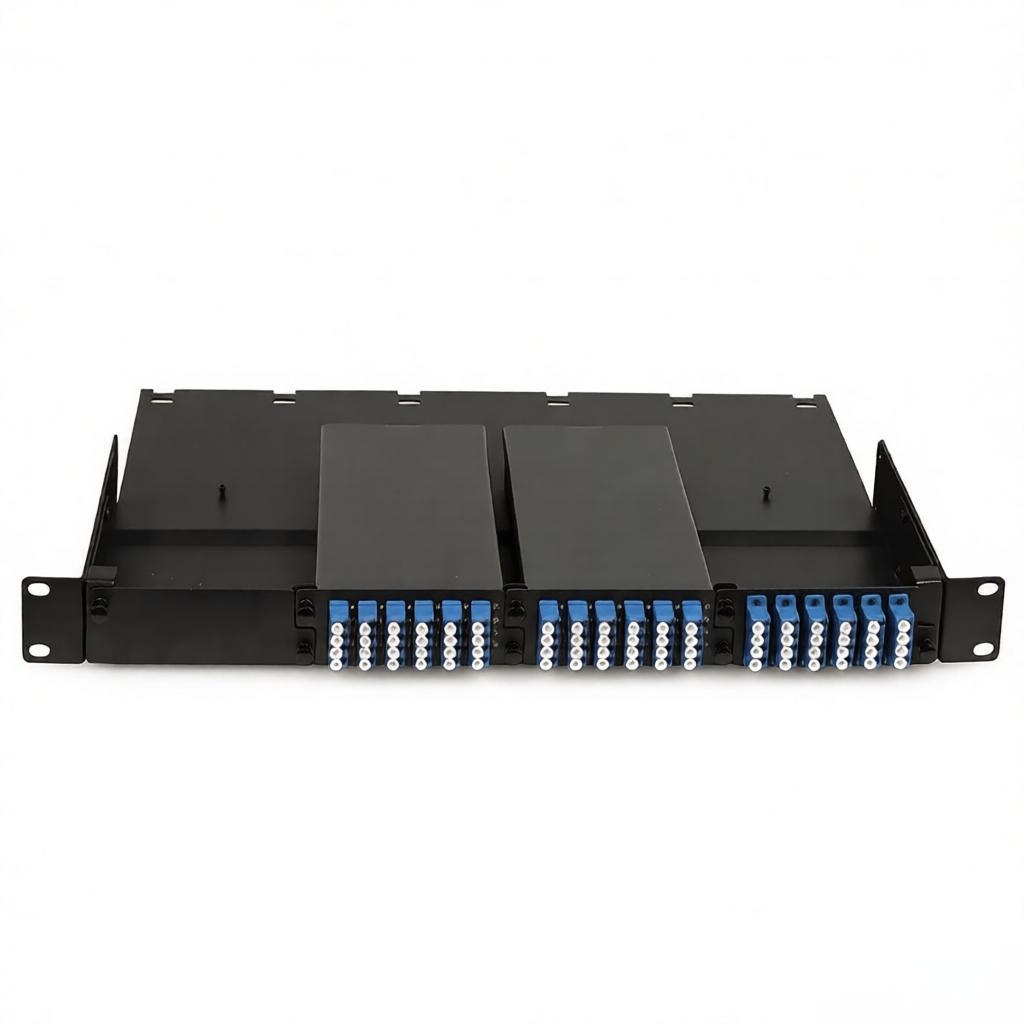

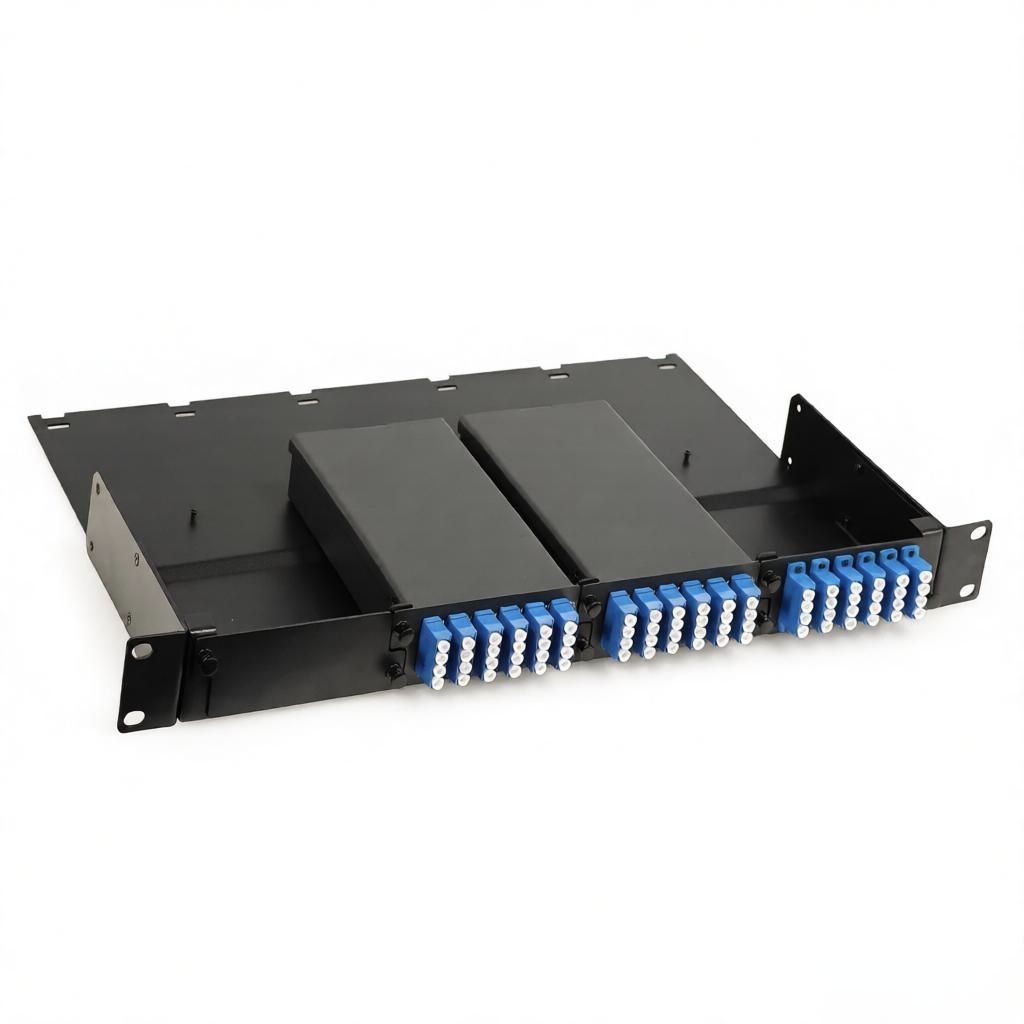

JJT-MPMC96-01 MPO Patch panel
Description:
This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Features:
Made by cold roll steel, electrostatic powder spraying.
Fixed type, without cover, convenient for observation and maintenance.
It is simple and light,convenient for air shipment.
Load max. 4pcs MTP/MPO cassettes.

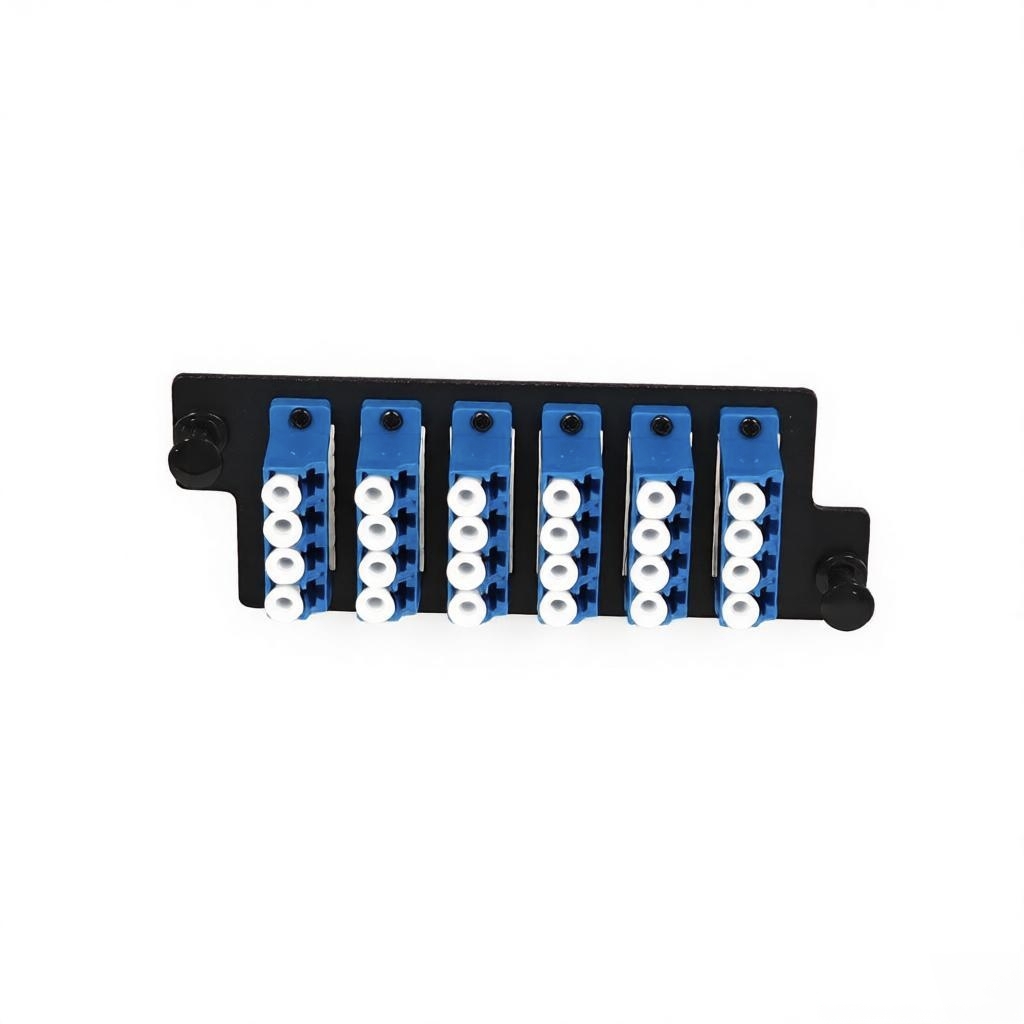

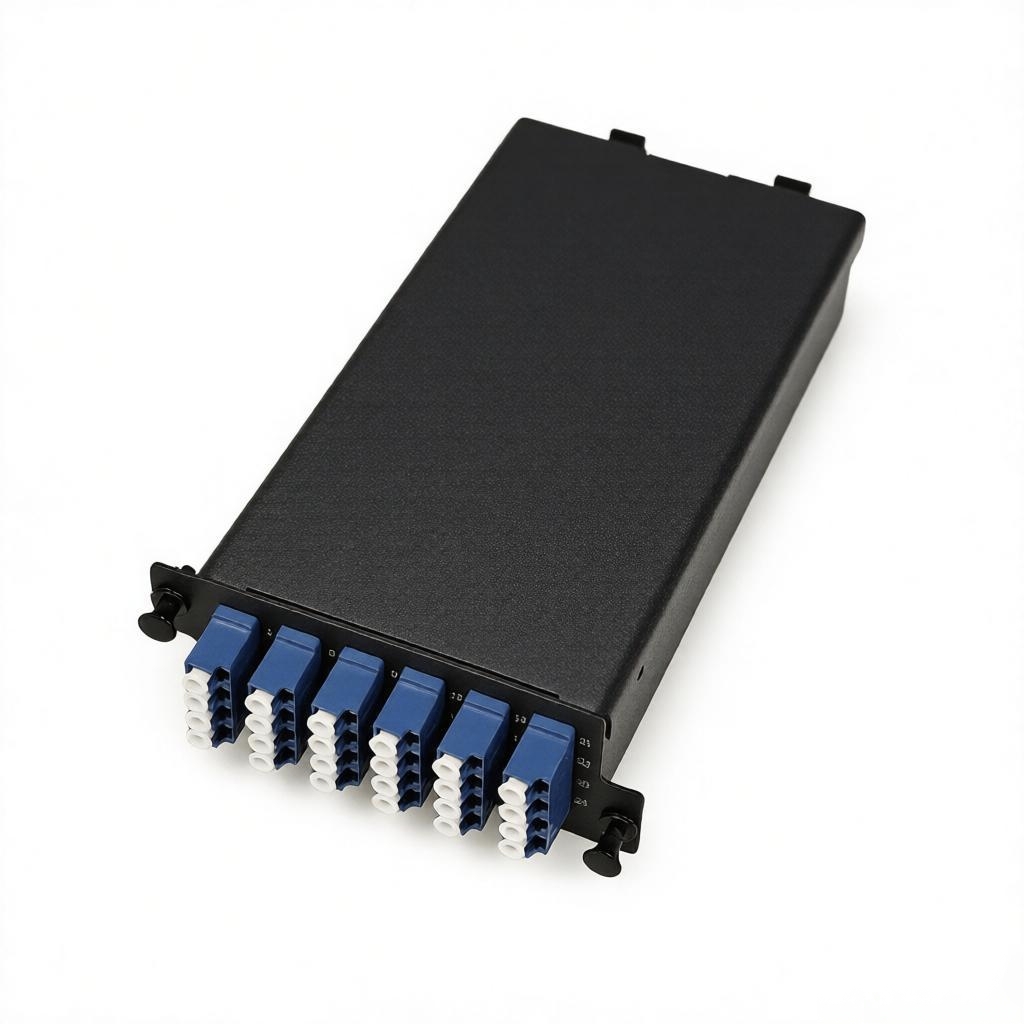

Each MTP/MPO cassette can load 6pcs LC quad adapter & 1 or 2pcs MTP/MPO adapter, max. 24fibers.
Application:
Data center, Network room
Specification:
|
Model |
Dimension |
Material |
Cassette |
Capacity |
Application |
|
JJT-MPMC96-01 |
482x300x44.3mm |
Cold roll steel |
4 pcs |
96 fibers |
Fixed mounted type |

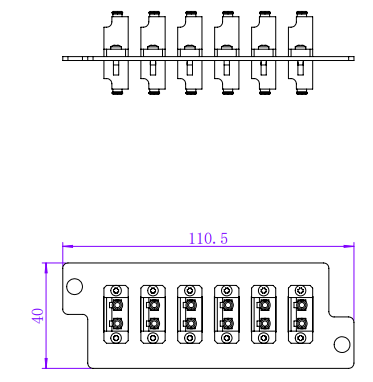

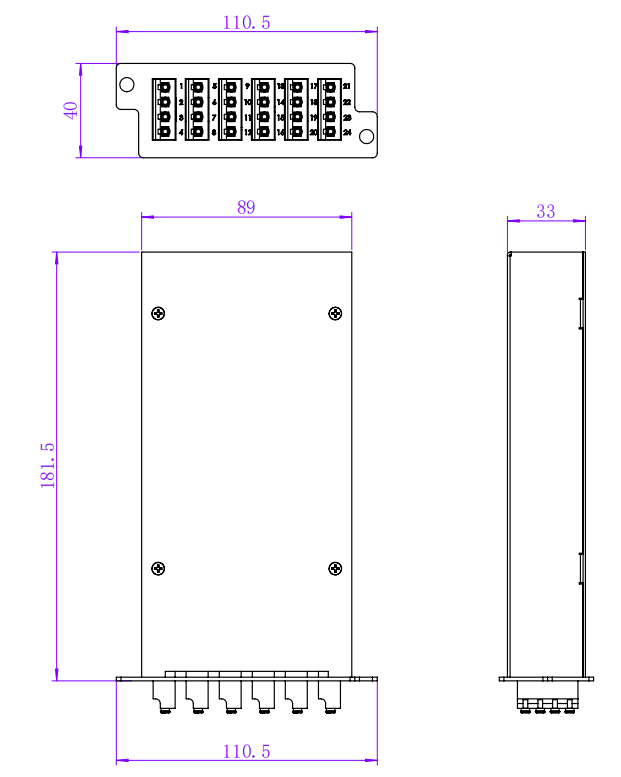

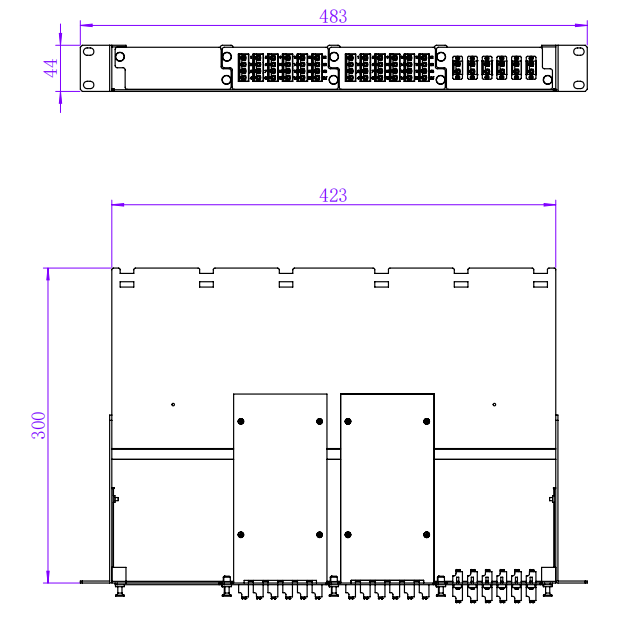

Drawing:
JJT-MPMC96-01 MPO Patch panel
