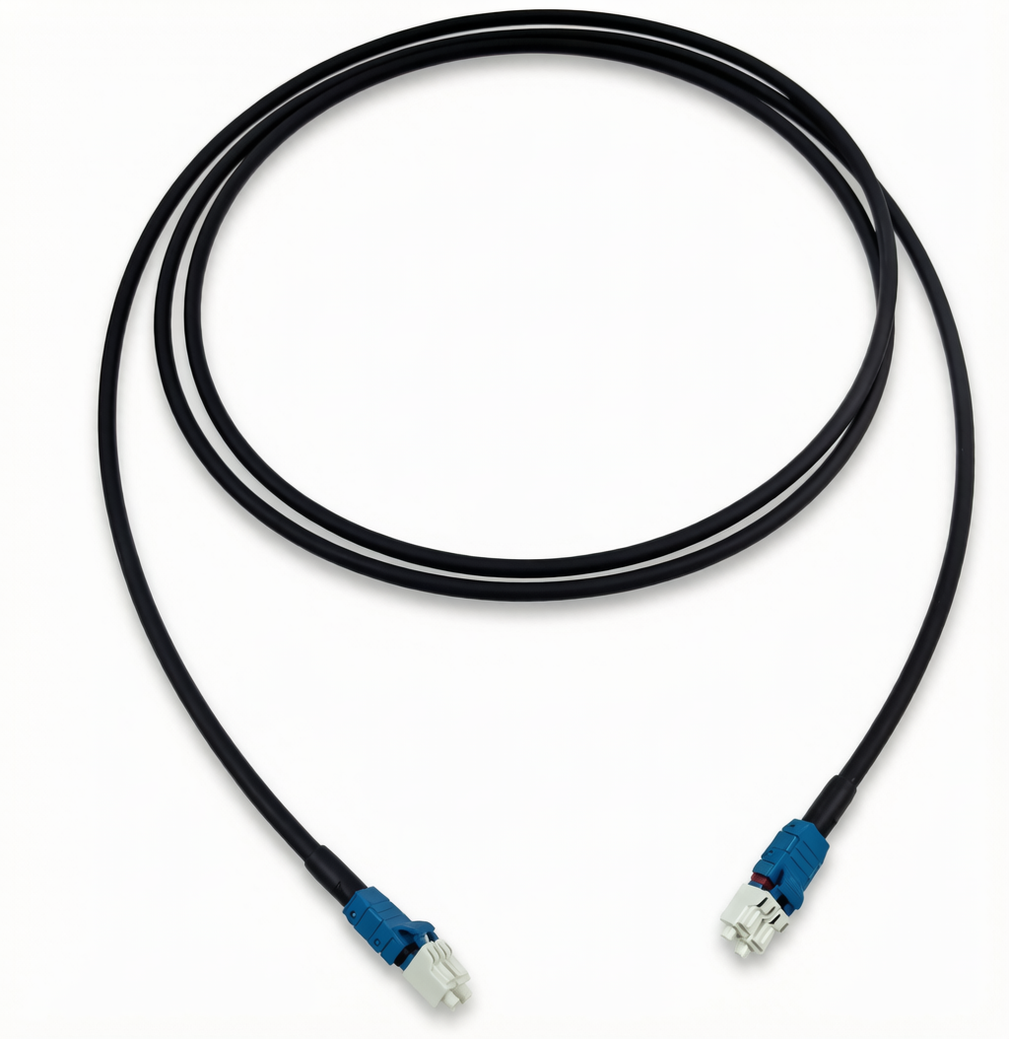

LC Uni boot 6.0mm Patch cord (Switch Polarity)

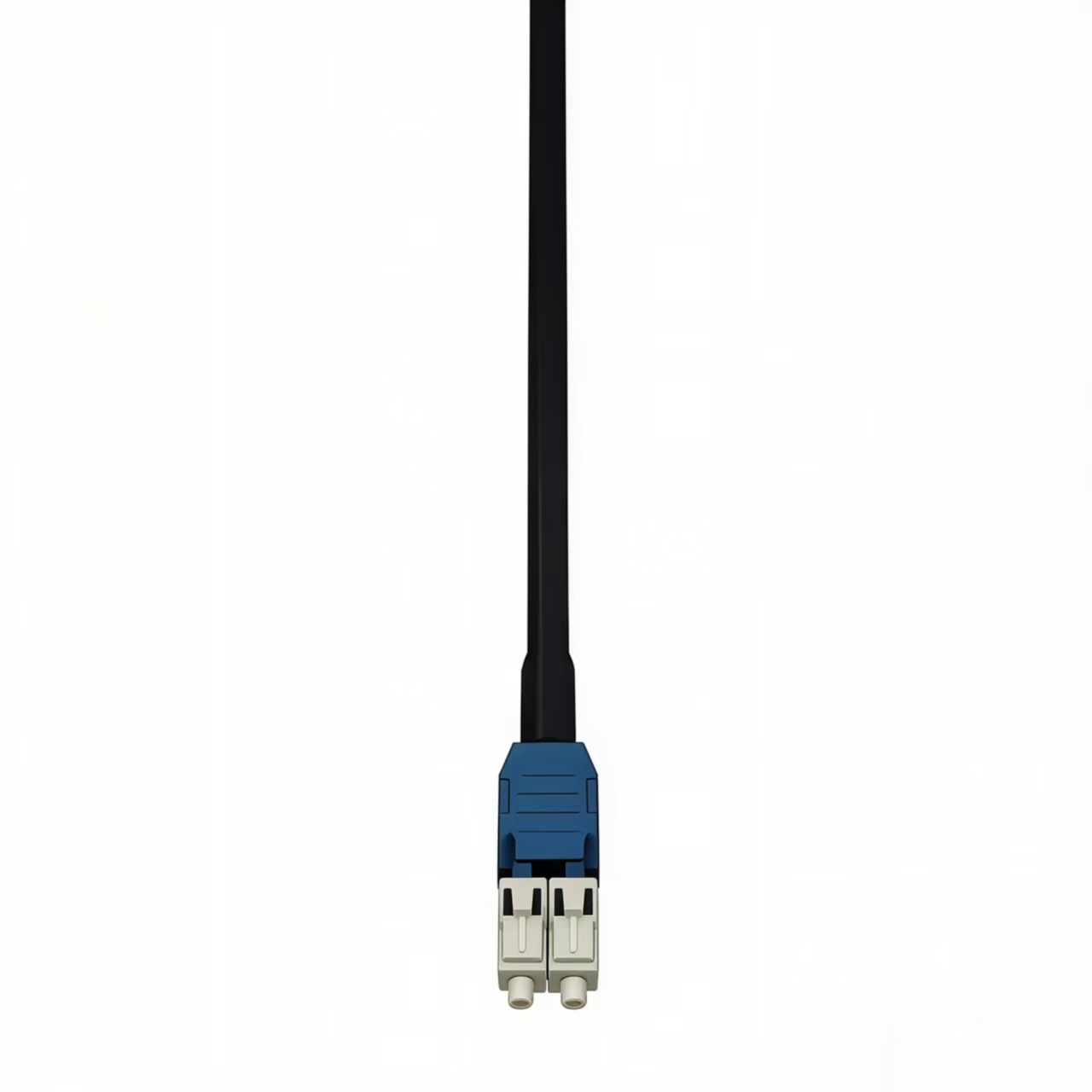

This type of LC Uni boot patch cord with integrated push/pull tab is the ideal solution for high density patching environments. The unique push pull tab allows easy finger access and a secure holding fixture for any patching or handling process. The attractive, low profile uni boot connector design utilises round 2 mm duplex cord for neater and denser cable management. For multimode OM4 and OM3 OM5 applications, low loss connectors are used to offer the lowest possible channel loss.
Applications:
---CATV; Active device termination;
---Telecommunication networks;
---Metro;
---Local Area Networks;
---Data processing networks;
---Test equipment;
---Premise installation;
---Wide Area Networks.
Features:
---Low insertion and back reflection loss;
---Good exchangeability;
---Good durability;
---High temperature stability;
---Standard: TelcordiaGR-326-CORE.
Fiber Optical Cable Details

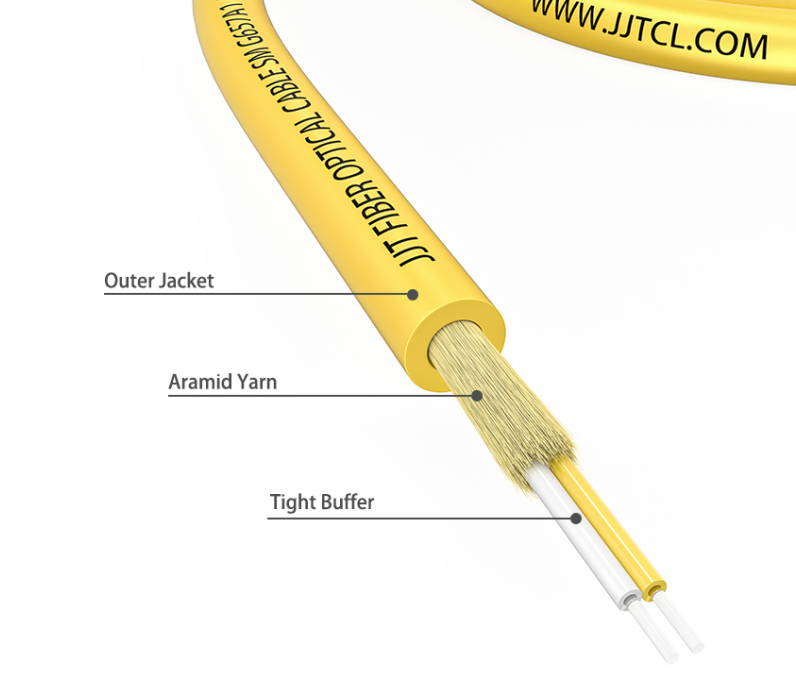

Cable Structure
|
Cable OD (mm) |
5.0 |
6.0 |
|
Tight Buffer (mm) |
0.9 |
0.9 |
|
Cable Weight (kg/km) |
20 |
25 |
|
Min.Bending Radius(mm) |
20D |
20D |
|
Max. Tension (N) Short Term |
100 |
100 |
|
Max. Tension (N) Long Term |
60 |
60 |
|
Jacket Material |
LSZH OFNR OFNP TPU |
|
|
Jacket Color |
Yellow Black |
|
|
Temperature Range (℃) |
-40 ~ +80 |
|
Patch cord Performance
|
Item |
SM(Single Mode) |
MM(Multimode) |
|||
|
Fiber Cable Type |
G652/G655/G657 |
OM1 |
OM2/OM3/OM4 |
||
|
Fiber Diameter (um) |
9/125 |
62.5/125 |
50/125 |
||
|
Cable OD (mm) |
6.0mm |
||||
|
End face Type |
PC |
UPC |
APC |
UPC |
UPC |
|
Typical Insertion Loss (dB) |
<0.2 |
<0.15 |
<0.2 |
<0.1 |
<0.1 |
|
Return Loss (dB) |
>45 |
>50 |
>60 |
/ |
|
|
Insert-pull Test (dB) |
<0.2 |
<0.3 |
<0.15 |
||
|
Interchangeability (dB) |
<0.1 |
<0.15 |
<0.1 |
||
|
Anti-tensile Force (N) |
>70 |
||||
|
Temperature Range (℃) |
-20 ~ +80 |
||||
Patch cord Length Tolerance
|
Overall length (L) （M） |
Length of tolerance（CM） |
|
0＜L≤20 |
+10/-0 |
|
20＜L≤40 |
+15/-0 |
|
L＞40 |
+0.5%L/-0 |
