LC Uni boot Push-Pull Patch cord (Switch Polarity)

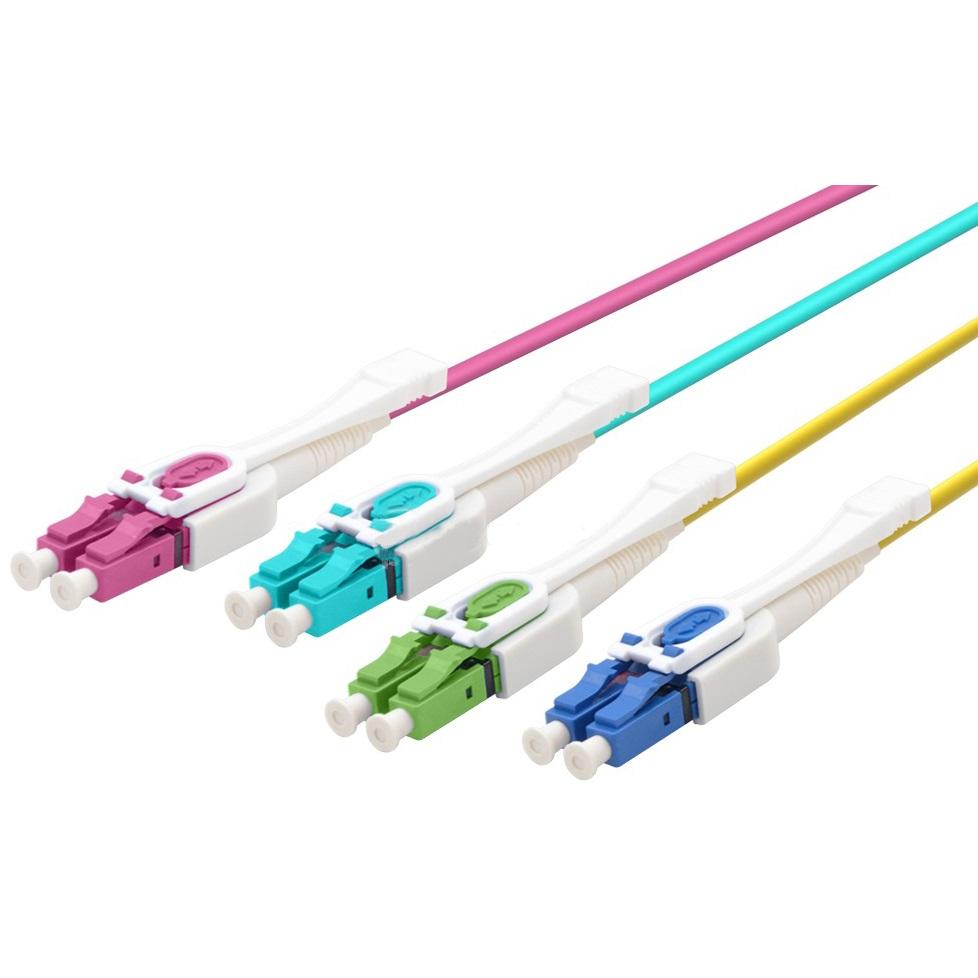

This type of LC Uni boot patch cord with integrated push/pull tab is the ideal solution for high density patching environments. The unique push pull tab allows easy finger access and a secure holding fixture for any patching or handling process. The attractive, low profile uni boot connector design utilises round 2 mm duplex cord for neater and denser cable management. For multimode OM4 and OM3 OM5 applications, low loss connectors are used to offer the lowest possible channel loss.

Applications:
---CATV; Active device termination;
---Telecommunication networks;
---Metro;
---Local Area Networks;
---Data processing networks;
---Test equipment;
---Premise installation;
---Wide Area Networks.

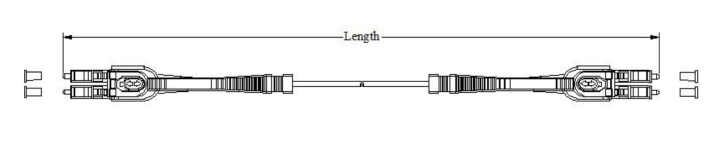

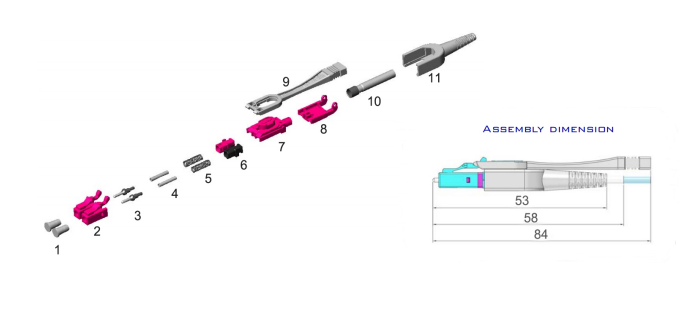

Uni boot LC Connector Parts Details

Item No.	1	2	3	4	5	6
Item Name	Dust Cap	LC-NDC-A	LC-Ferrule	LC-Tube	LC-Spring	LC-NDC-B
Material	TPV92	PEI	Zr02+SUS	Teflon	SUS	PEI
Note	UL 94 V0	UL 94 V0	/	UL 94 V0	/	UL 94 V0
Item No.	7	8	9	10	11
Item Name	LC-NDC-C	LC-NDC-D	LC-NDC-E-S	LC-NDC-HSS	LC-NDC-F
Material	PC	PC	POM	AL+PE	POM
Note	UL 94 V0	UL 94 V0	UL 94 V0	/	UL 94 V0

Fiber Optical Cable Details

Cable OD (mm)	1.6	2.0	3.0
Tight Buffer (mm)	0.6	0.6	0.9
Cable Weight (kg)	2.6	6	8
Min.Bending Radius(mm)	20D	20D	20D
Max. Tension (N) Short Term	100	100	150
Max. Tension (N) Long Term	60	60	80
Jacket Material	LSZH OFNR OFNP
Jacket Color	Yellow Aqua Purple Eric Violet etc.
Temperature Range (℃)	-20 ~ +80

Patch cord Performance

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652/G655/G657			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	1.6 / 2.0 / 3.0
End face Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-20 ~ +80
