| Model No. | 12F MPO-LC Cassette Module |
| Brand Name | OEM |
| Place of origin | China |
| Number of cores | ≥ 10 |
| 144F panel Color | Black |
| 1U Panel Size | 1U |
| Panel Max capacity | 144F |
| Empty Panel Weight | 6.8kg |
| Panel Material | SPCC, 1.2mm Black（RAL9005) |
| Cassette Capacity | 12F |
| Connectors for the Cassette | MPO-LC |
| Cassette size | 88*144*12mm |
| Cassette Material | PC+ABS V0 grade |
| Cassette coloe | Light grey |
Product description

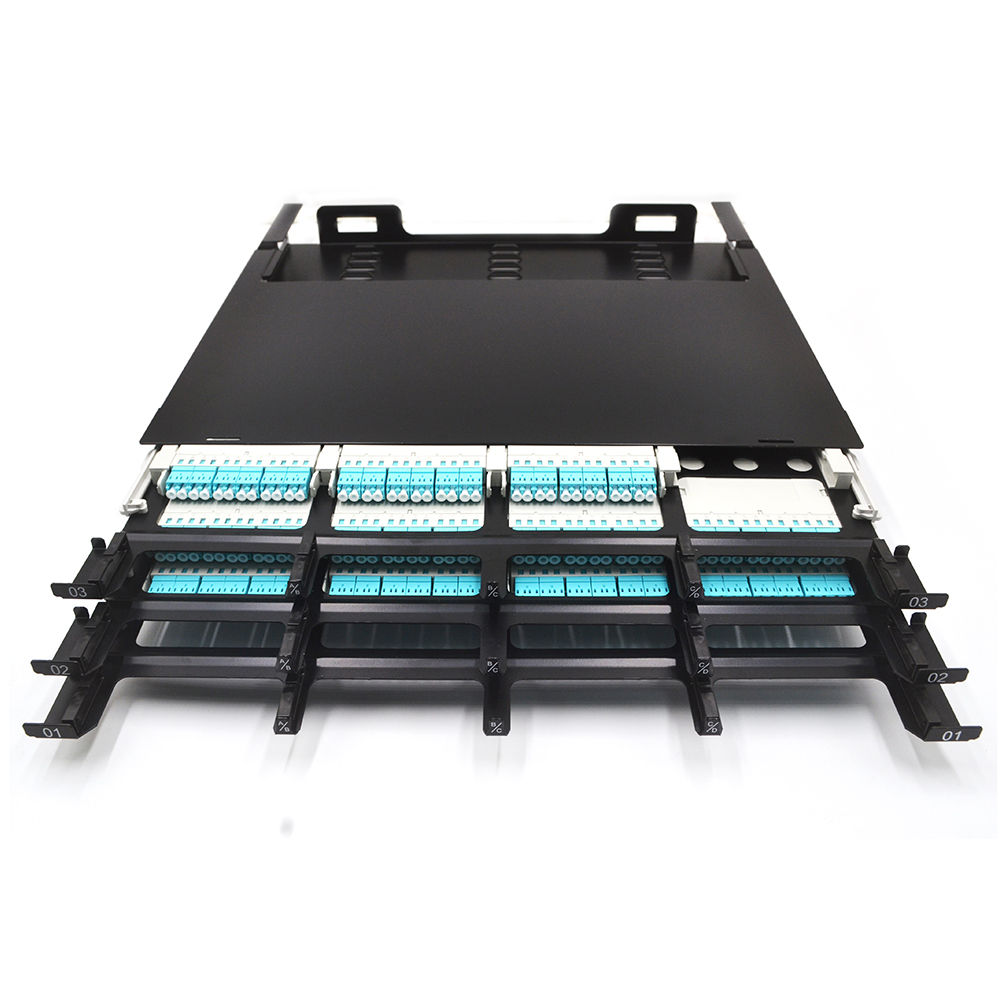

12F MPO-LC Cassette for 1U 144core high density patch panel,which is very samll size and light weight.Used in the 1U 144F high density patch panel.Each cassette can load 6pcs LC duplex adapter&1pc MPO adapter&1pcs 12F OS2 OM2 OM4 OM5 MPO-LC jumper cable.
MPO/MTP Cassette Module possess optical fiber branching patch cords inside to split the 12-core MPO / MTP connector into simplex or duplex LC connector. Simplex or duplex connectors are placed infront of the modules, and one or two MPO/ MTP connectors are placed at the back of the modules.
The branching patch cord connect the front LC and the near MPO/MTP connectors. This type of modules can be easily installed in 1U and 4U Chassis.
Applications
1.Data center infrastructure
2.High Density Fiber Management
3.Building telecommunication cabling system
4.LAN, WAN, CATV and metro Test equipment
Date Sheet
| Item No. | Item Name | Specification |
| 1 |
High density fiber optic patch panel 1U-144 cores |
1, Width: 482.6mm |
| 2, Depth: 464.9mm | ||
| 3, 1U Height: 44.2mm | ||
| 4, Material: SPCC, 1.2mm Black（RAL9005) | ||
| 5, Weight:6.8kg | ||
| 2 |
High density fiber optic cassette module 12 core LC, OS2/OM3/OM4 |
1, Width*Depth*Height: 88*144*12mm |
| 2, Material: PC+ABS V0 grade | ||
| 3, Color: Light grey | ||
| 4, LC adapter: 6pcs installed, V0 grade, IL≤0.2dB. Color option: OS2 Blue/OM3 Aqua/OM4 Pink | ||
| 5, MPO adapter: 1pcs installed, V0 grade, black | ||
| 6, MPO/LC patch cord: 1pcs, low loss |
Features and Benefits
Factory pre-termination, 100% tested to ensure the transmission performance
Modular design, easy for expansion
Reasonable of optical fiber cable route
Minimize structure and ensure fiber bending radius not less than 30mm
Rapid configuration, reduce installation time
Rapid upgrading, support parallel transmission
Complied Standards
Comply with TIA/EIA 604-5, IEC 61754 series standards.
12F MPO-LC Cassette Module for 1U panel
