Brand Name	OEM
Place of origin	China
Number of cores	2
Brand Name	OEM
Connector type	LC Uniboot
Fiber type	SM or MM
Polish Type	UPC/APC/PC
Length	Customized
Cable OD	2.0mm or 3.0mm

Product description

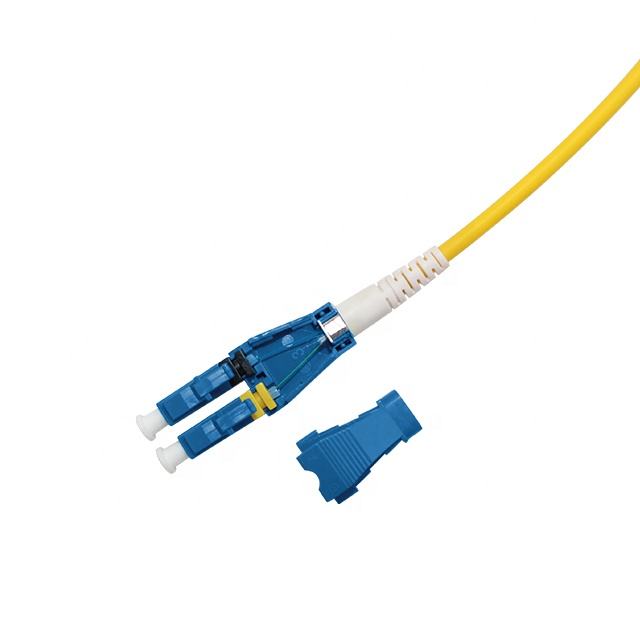

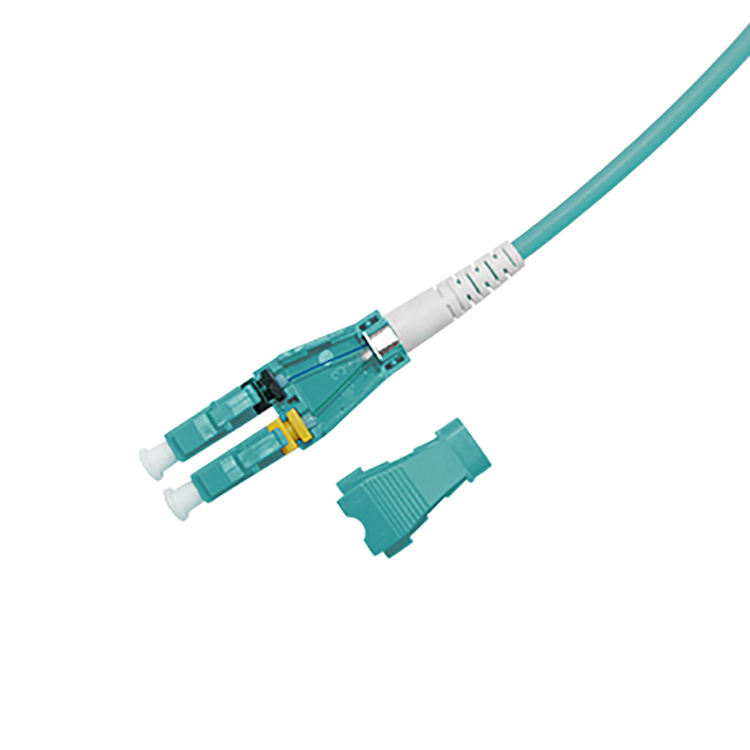

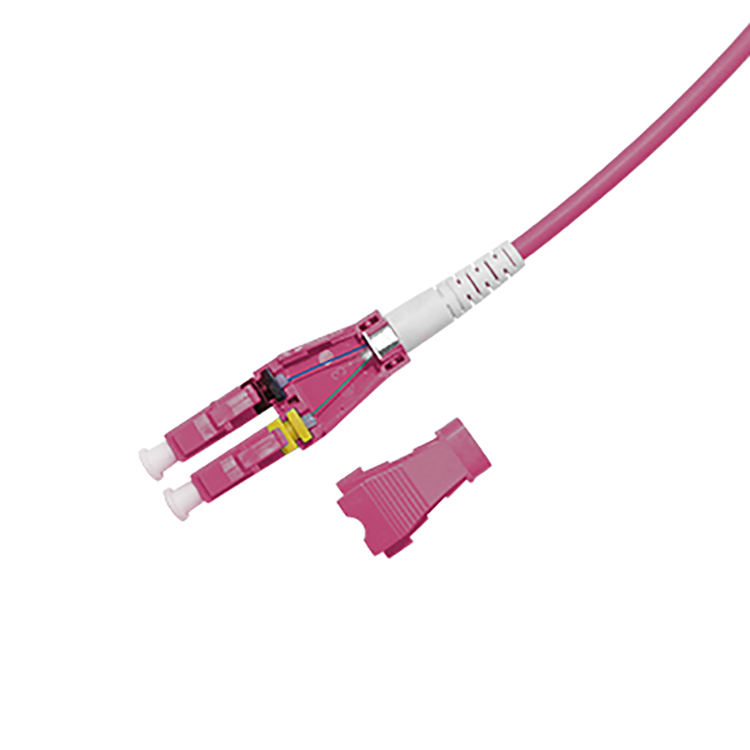

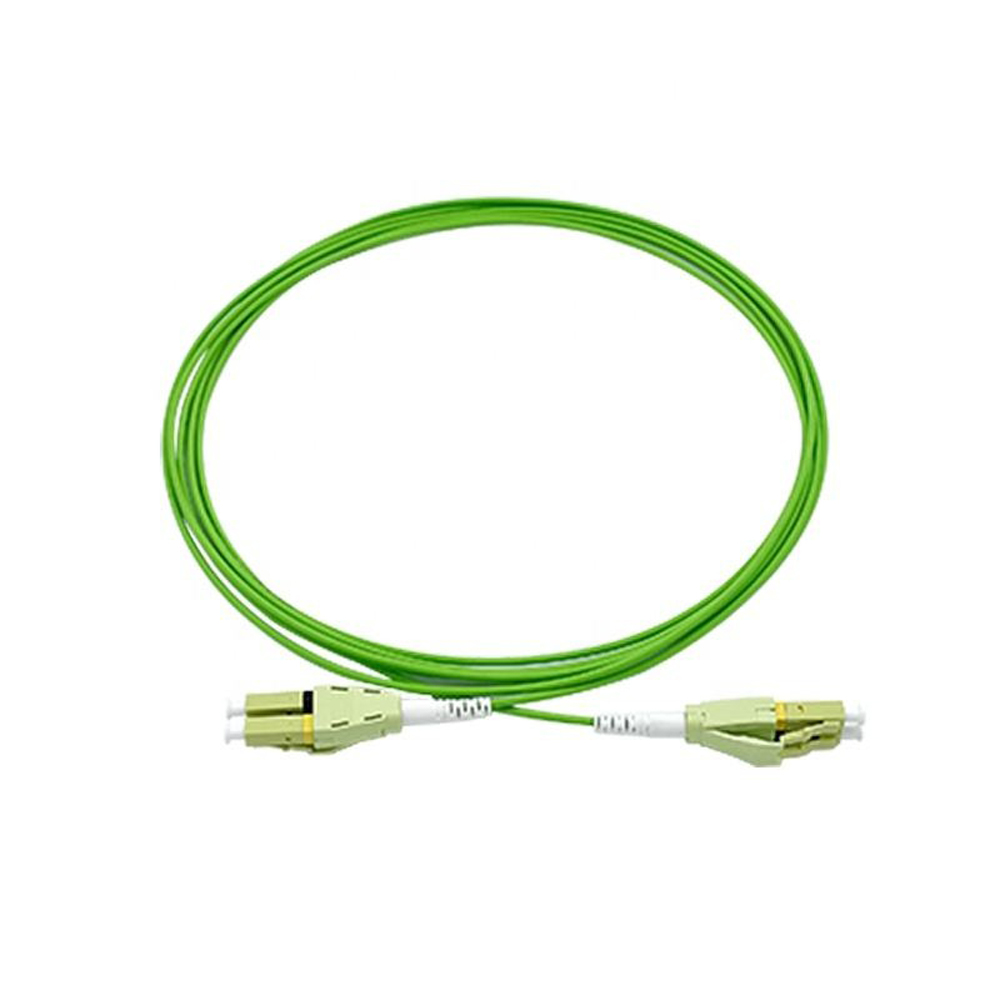

LC UNIBOOT CONNECTOR WITH SWITCHABLE POLARITY

JJT’s range of LC Uniboot style patchcords with integrated push/pull tab are the idealsolution for high density patching environments. The unique push pull tab allows easy finger access and a secure holding fixture for any patching or handling process. The attractive, low profile uniboot connector design utilises round 2 mm duplex cord for neater and denser cable management. For multimode OM4 and OM3 OM5 applications, low loss connectors are used to offer the lowest possible channel loss.

Applications

---CATV; Active device termination;
---Telecommunication networks;
---Metro;
---Local Area Networks;
---Data processing networks;
---Test equipment;
---Premise installation;
---Wide Area Networks.

Features

---Low insertion and back reflection loss;
---Good exchangeability;
---Good durability;
---High temperature stability;
---Standard: TelcordiaGR-326-CORE.

Performance Index

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652/G655/G657			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

Features

1,Polarity switchable

2,Comply with IEC 61754-20

3,Materials comply with RoHS ,REACH and UL94V-0.

4,Connector colors:green blue beige aqua violet.

5,cable diameter: outer jacket 3.0mm 2.0mm with 0.6mm inner tight buffer

6,Repeatability :<0.3dB after 500times plugin and plug out.

7,Working temperature: -40°C ~ 85°C

Materials

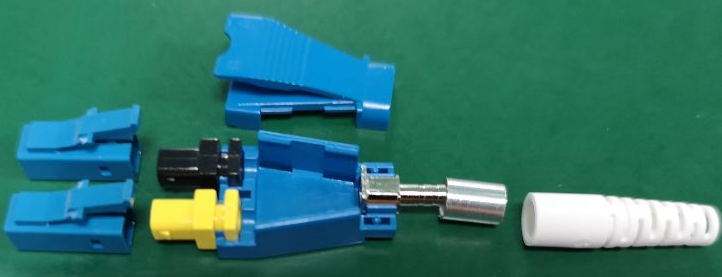

S/N	Item	Material	QTY
1	Dust cap	PVC	2
2	Housing	PEI	2
3	Transparent tube	PTFE	2
4	Spring	C304	2
5	Connecting part(yellow and black)	PEI	2
6	Shell	PC	1
7	Shell cover	PC	1
8	Block	Copper with nickel plated	1
9	Crimping ring	Aluminium	1
10	Boot	PVC	1
11	LC ferrule with boot	Ceramic ferrule+coper boot	2
