Product description

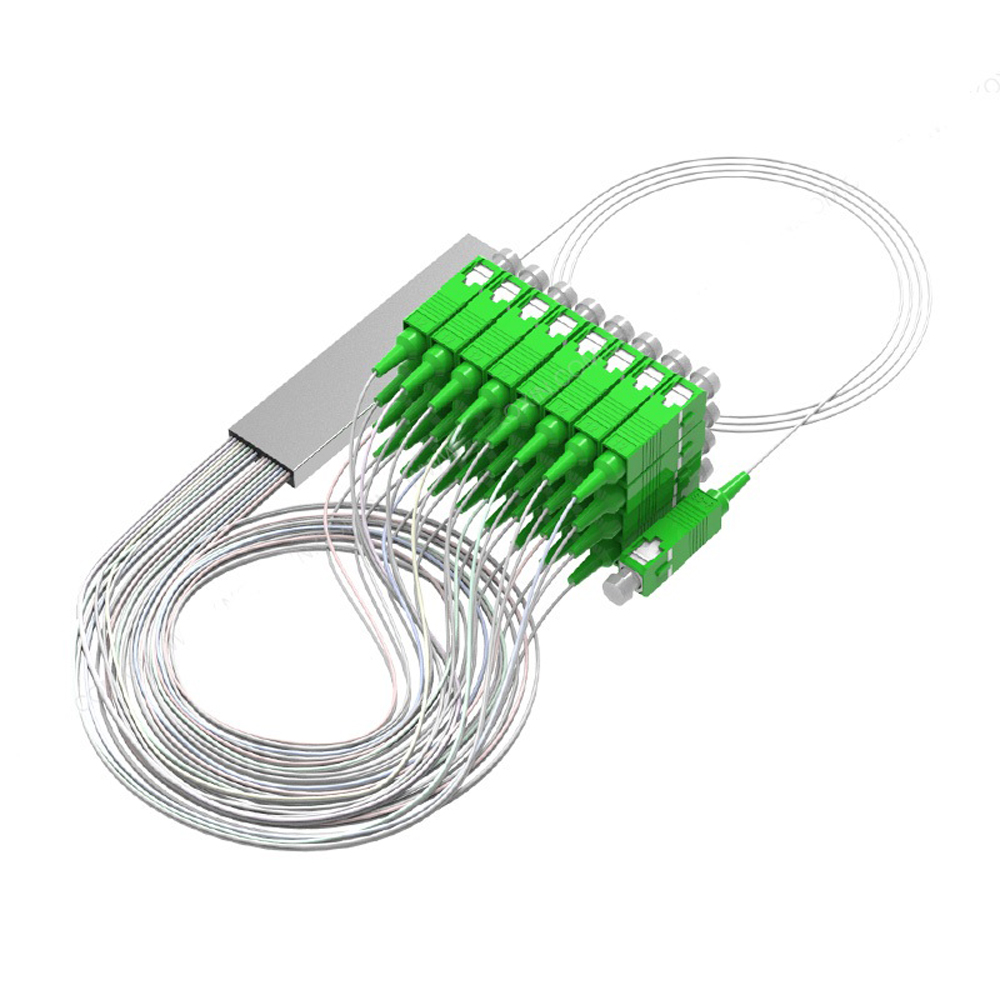

The Bare Fiber PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

Features

■ Wide Operating wavelength From 1260-1650nm

■ Low excess loss & High performance

■ Good uniformity & Low PDL

■ Small package size

■ Various connector type & Package Size available

■ A temperature chamber - allows to make the programmable tests from

- 4 0 t o 8 5 ° C however other tests are also available

Applications

■ FTTH and FTTx
■ Test Equipment
■ Telecommunication Networks
■ Analog/Digital Passive Optical Networks

■ Data Processing Networks
■ Premise Installations
■ LAN, WAN and Metro Networks
■ Other applications in fiber optic systems

■ Industrial, Medical & Military
■ CATV system
■ Active Device Termination
■ Fiber optic sensors

1×N PLC Splitter

2×N PLC Splitter

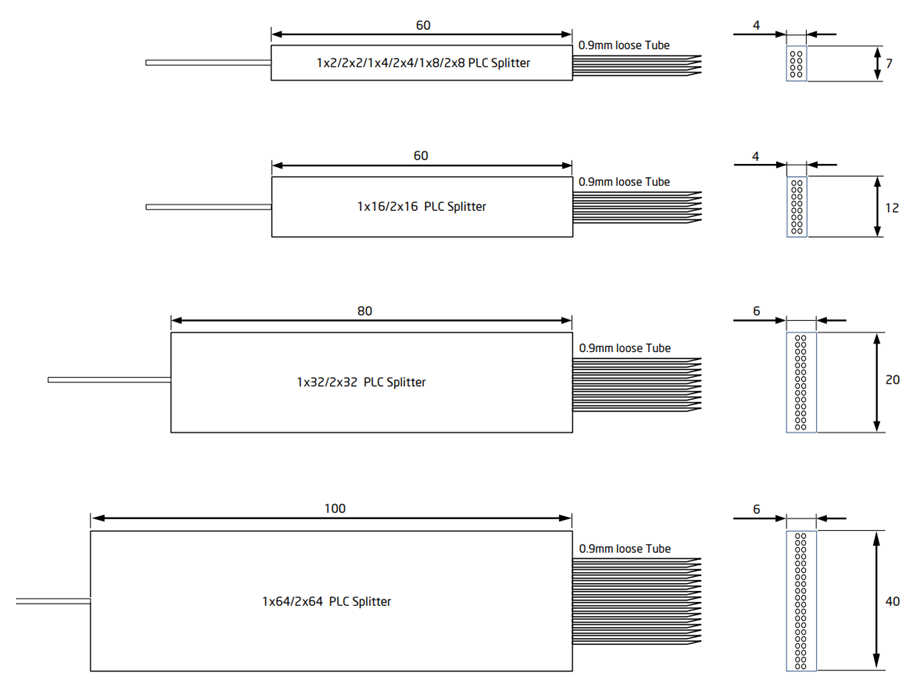

Mini Module Type Diagram
