Basic Info

Model No.	OptiTap Fiber Cable Assembly
Brand Name	OEM
place of origin	China
Number of cores	1
Cable Jacket	LSZH/PE
Fiber Count	1F
Fiber Type	G652D/G657A

Product description

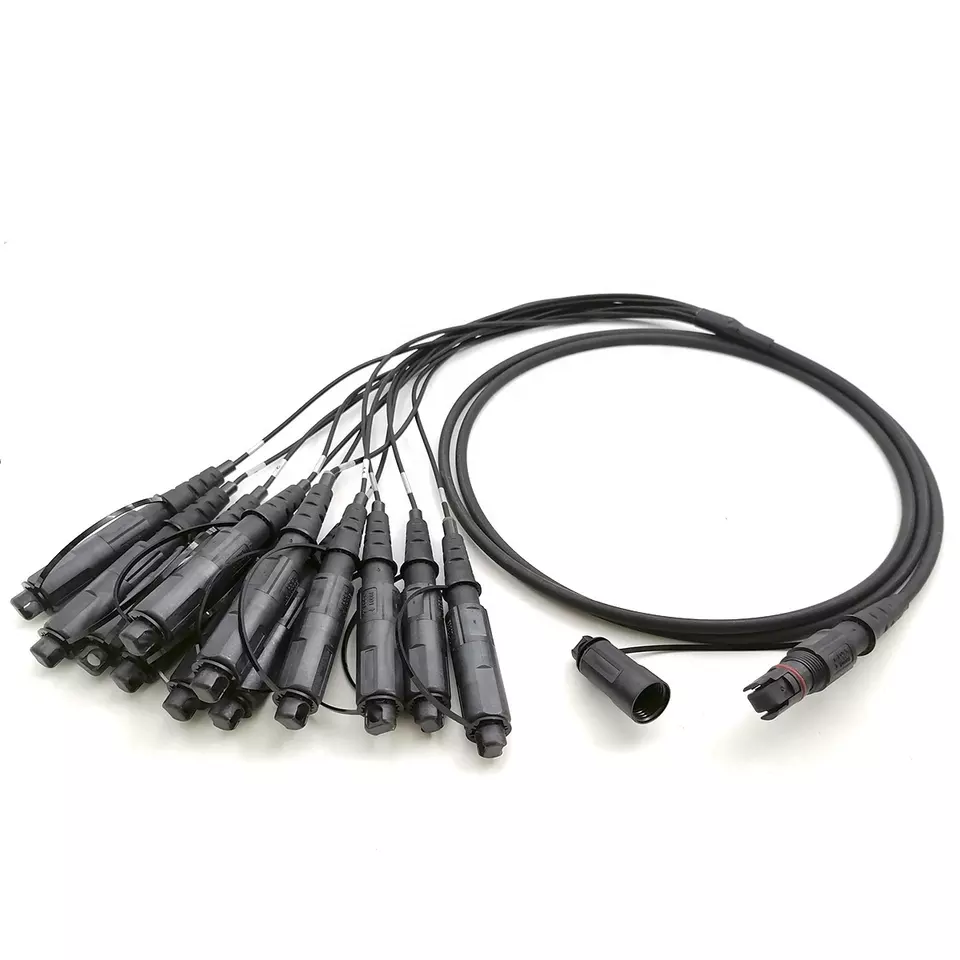

OptiTap Cable Assembly is factory -terminated, environmentally sealed and hardened connector to reduce the cost and the time of drop cable deployment in optical access networks. The OptiTap Single -Fiber Drop Cable Assembly is specifically designed to significantly reduce required drop cable installation.

Features and Benefits
Smaller profile and reduced bend-radius
Designed for rapid connection to external flush-mounted bulkhead adapters on terminals or closures
Robust design keeps connector intact during installation
Integral pulling eye/connector cap designed for 100 lb maximum pulling tension

Applications

FTTH
Outdoor Areas
Harsh Environment

Specification

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
