Basic Info
| Model No. | 96F MPO-LCPatch panel |
| Brand Name | OEM |
| Place of origin | China |
| Number of cores | ≥ 10 |
| Color | Black |
| 1U Panel Size | 482x300x44.3mm |
| Panel Max capacity | 96F |
| Empty Panel Weight | 2.5kg |
| Panel Material | Cold roll steel |
| Model Name | JJT-1U-96F |
Product description
96F MPO-LC Patch panel with 4pcs Cassette Module(JJT-1U-96F)
This type 96F MPO-LC patch panel is Fixed type and without cover,which very convenient for observation and maintenance.Could load 4pcs mpo cassette module.Each module max capacity 24F.
This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Features
Made by cold roll steel, electrostatic powder spraying.
Fixed type, without cover, convenient for observation and maintenance.
It is simple and light,convenient for air shipment.
Load max. 4pcs MTP/MPO cassettes.

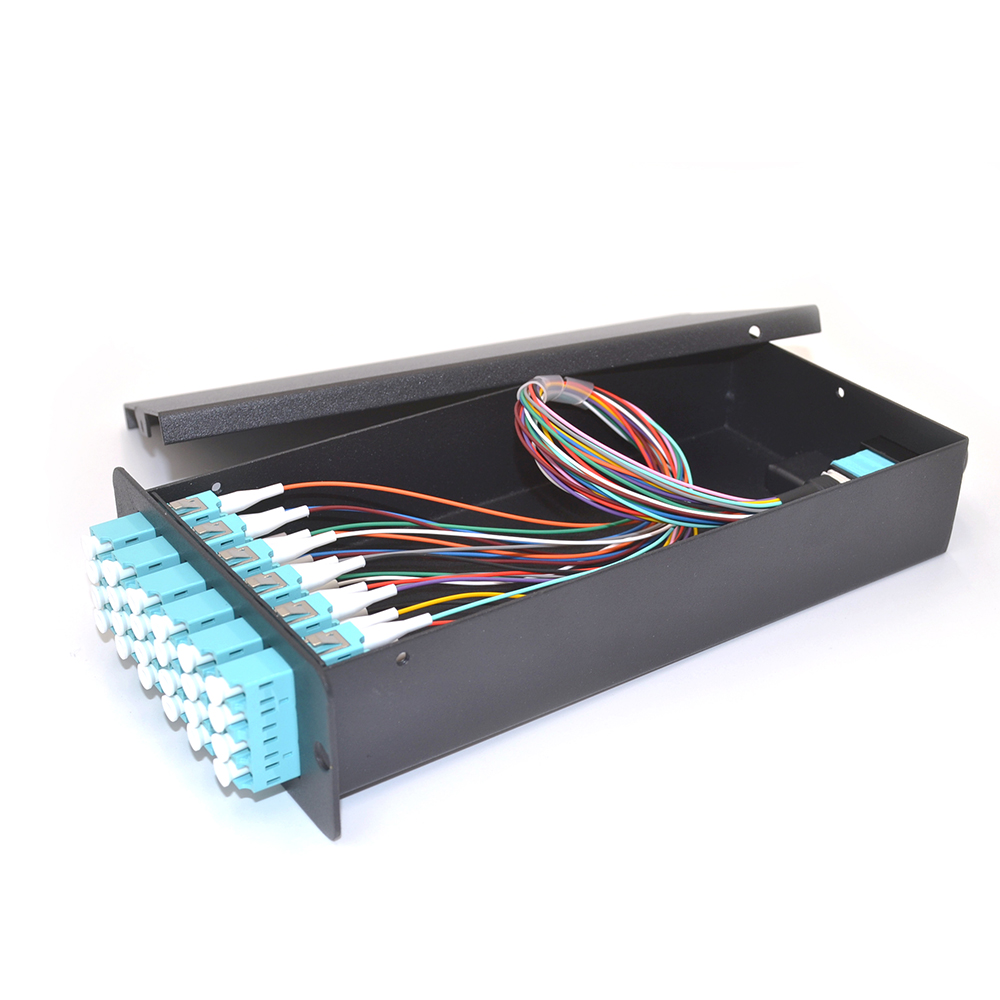

Each MTP/MPO cassette can load 6pcs LC quad adapter & 1 or 2pcs MTP/MPO adapter, max. 24fibers.
Application
Data center, Network room
| Model | Dimension | Material | MPO box | Capacity | Application |
| JJT-1U-96F | 482x300x44.3mm | Cold rollsteel | 4pcs | 96 fibers | Fixed mounted type |
96F MPO-LC Patch panel with 4pcs Cassette Module
