Basic Info
| Model No. | 24F |
| Place of origin | China |
| Number of cores | ≥ 10 |
| Cable Type | Distribution Cable |
| Main Cable OD | 8.4mm |
| Connector Type | LC/SC/ST/FC |
| Polish Type | UPC/APC |
| Fiber | SM OM1 OM2 OM3 OM4 OM5 |
| Fiber Count | 24 Fibers |
| Jacket Material | LSZH OFNR OFNP TPU |
| Operating Temperature | -20~70°C |
| Breakout OD | 2.0mm |
| Minimum Bend Radius | 20/10D (Dynamic/Static) |
Product description
24F Pre-Terminated Indoor Outdoor Cable
Pre-terminated indoor/outdoor fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.
Applications
Data processing networks
Optical access network
Telecommunication networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Complied Standards
IL&RL TESTING : Compliant with IEC 61300-3-34 GEOMETRICAL CHARACHTERISTICS ：Compliant with IEC 61755-3-1 Connector End face : Compliant with IEC 61300-3-35 Fire resistance comply with low smoking (IEC 61034), halogen free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion proof (IEC 60754-2)
General Specification
|
Connector Type |
LC/SC/ST/FC |
Polish Type |
UPC/APC |
|
Fiber |
SM OM1 OM2 OM3 OM4 OM5 |
Fiber Count |
24 Fibers |
|
Jacket Material |
LSZH OFNR OFNP TPU |
Minimum Bend Radius |
20/10D (Dynamic/Static) |
|
Jacket Color |
12 colors |
Main Cable OD |
8.4 mm |
|
Breakout OD |
2.0mm |
Return Loss |
UPC≥50dB, APC≥60dB |
|
Insertion Loss |
≤0.3dB |
Max. Tension of Pulling Eye |
245N |
|
Cable Type |
Distribution Cable |
Operating Temperature |
-20~70°C |

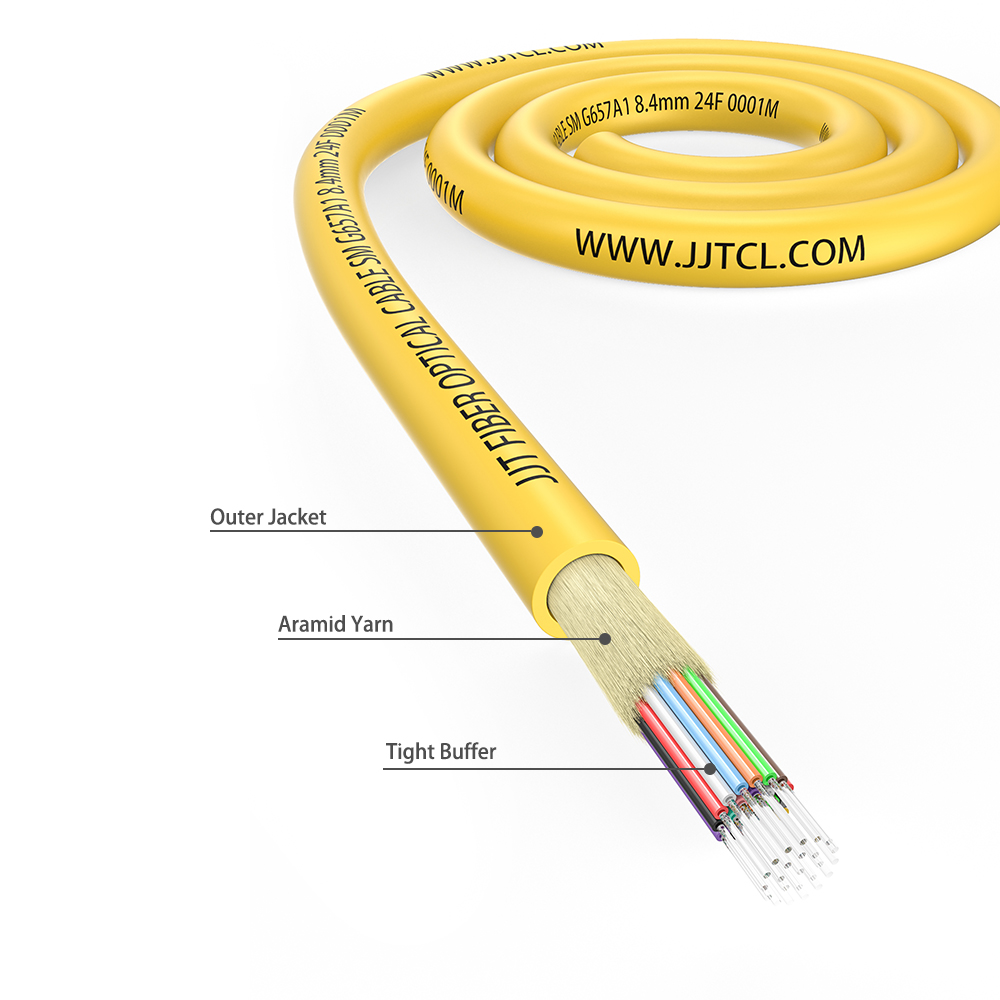

Cable Construction
24F SM G652.D indoor outdoor pre-terminated fiber optical patch cable with drum
