Basic Info

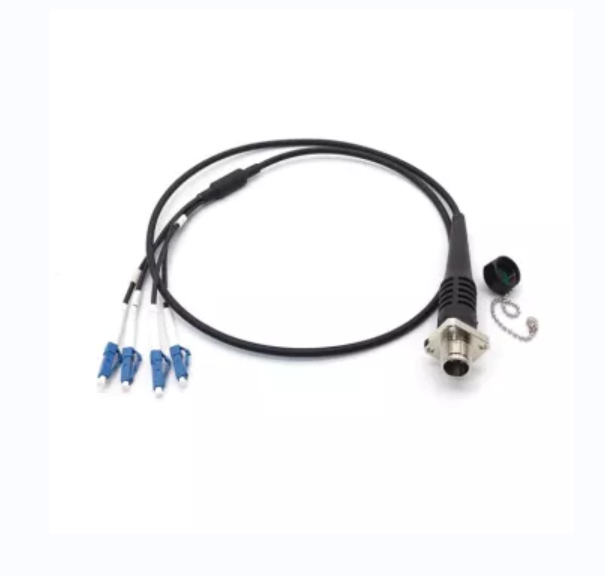

Model No.	ODC Fiber Optic Patch Cords
Brand Name	OEM
Place of origin	China
Number of cores	1
Fiber Type	G652D/G657A
Cable Jacket	LSZH/PE
Fiber Count	2 Fibers

Product description

It is designed for the fiber to antenna(FTTA) applications, ODC fiber optic connector can withstand harsh environmental conditionswhen being used in outdoor applications. It is becoming the standard interface specified in 3G,4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. It also play a strong role in the oil, wind power, rail transport, heavy machinery of digital information transmission and other areas.

The ODC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68. They are well suited for Industrial, Aerospace and Defense applications.

Features

1. 2 fiber / 4fiber ,single mode or multimode are available
2. Compact design with 2/4×1.25 mm ferrules or 2×2.5mm ferrules
3. Built-in socket with square or hexagonal flange
4. Extension connector for cable chaining
5. Screwed locking mechanism
6. Easy and safe installation
7. Water proof ,dust proof and corrosion resistant
8. Water proof protection caps
9. EMI protected
10. Full compatibility to previous version
11. Fulfills performance Standard IEC 61753-1 Cat.E

Application

1. Fiber Optical link IBM ESCON networks
2. Peripheral control units
3. Storage devices and Processors
4. Workstations and From Molex

Specification

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

GYFJH 7.0mm fiber cable Specification

Item	Item
Fiber	Single mode G.657A1 or G.657A2
Fiber diameter	7.0mm
Material & color for jacket	Black color, LSZH jacket
Tension member	Aramid Yarn
Max. attenuation	≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm
Tensile resistance(short term)	500N(no breakage)
Crush resistance(short/long term)	1000N/100mm
Inflaming retarding	IEC 60332-3
Temperature	-40~+70°C
Authentication	Meet with RoHS & UL
